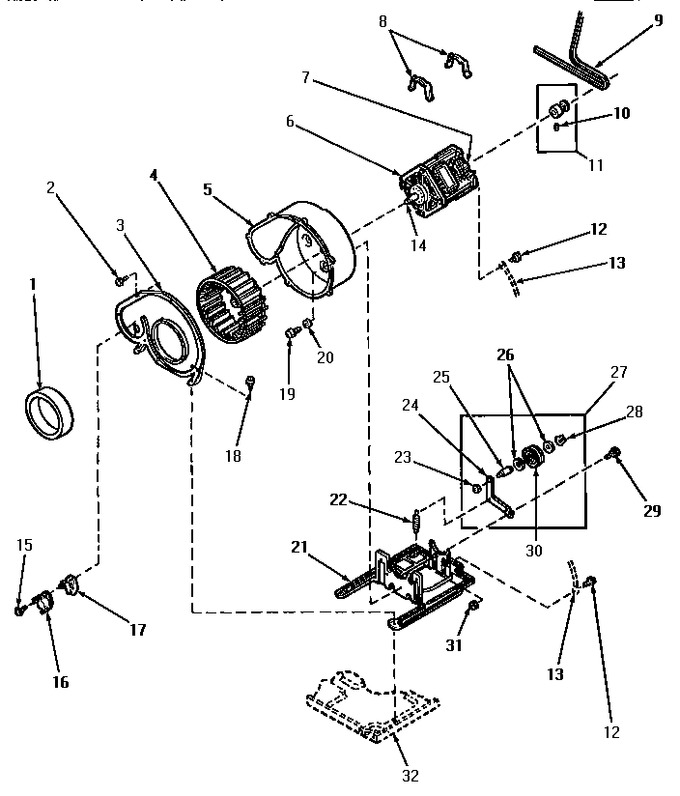

AGM659 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	56065	Seal			$ 14.16
2	WP90767	Screw,8b-18 X 3/8 Ind (Replaces: 23962)		Immediately	$ 7.04
3	60938P	Cover,blower Housing	Appelez-nous	-
4	D510139P	Assembly, Blower Fan (Replaces: 56000)		Immediately	$ 101.08
5	D511969WP	Housing, Blower (Replaces: 56020)			$ 61.51
6	Y58044	Motor,1sp-120/60	Appelez-nous	-
7	59895	Motor Switch, Internal Mounted	Appelez-nous	-
7	53249	Switch	Appelez-nous	-
7	53226	Switch,motor	Appelez-nous	-
8	WP660658	Clamp, Motor Mount (Replaces: Y58047)			$ 7.05
9	WP40111201	Belt, Cylinder (Replaces: 59174)		Immediately	$ 16.81
10	52906	Setscrew	Appelez-nous	-
11	59173	Motor Pulley Assembly	Appelez-nous	-
12	WP3177991	Screw, 8b-18 X 1/4 He (Replaces: 23222)		Immediately	$ 6.47
13	Y00000000	See Note Ground Wire, Green	Appelez-nous	-
14	27604P	Never-seeze 1 Oz Tube			$ 7.07
15	52150	Screw, Thermostat	Appelez-nous	-
16	Y61372	Thermostat			$ 43.72
17	61401	Thermostat Heater			$ 115.17
18	WP3390631	Hex Head Screw (Replaces: 51780)			$ 7.04
19	WP27001200	Hex Head Screw (Replaces: 56264)			$ 6.91
20	20492	Washer	Appelez-nous	-
21	Y60816	Motor Mounting Bracket	Appelez-nous	-
22	WP56076	Spring, Idler (Replaces: 56076)			$ 65.70
23	56156	Nut, 3/8-16 Serrated			$ 6.95
24	56057	Lever,idler	Appelez-nous	-
25	WP56461	Shaft (Replaces: 56461)			$ 85.03
26	WP233520	Washer, 501 Id X3/4 Odx (Replaces: 52549)		Immediately	$ 7.16
27	WP56170P	Assy, Idler Lever (Replaces: Y56170)			$ 67.98
28	WP23748	Ring, Retaining (Replaces: 23748)		Immediately	$ 10.75
29	56587	Screw,1/4-20 Hex Hd Sh	Appelez-nous	-
30	WPY54414	Assembly, Wheel & Bearing (Replaces: Y54414)		Immediately	$ 19.11
31	WPW10139757	Nut, Hex Jam 1/4-20l (Replaces: 52566)			$ 7.16
32	Y00000000	See Note Base -- (see Page 10, Key 14)	Appelez-nous	-
