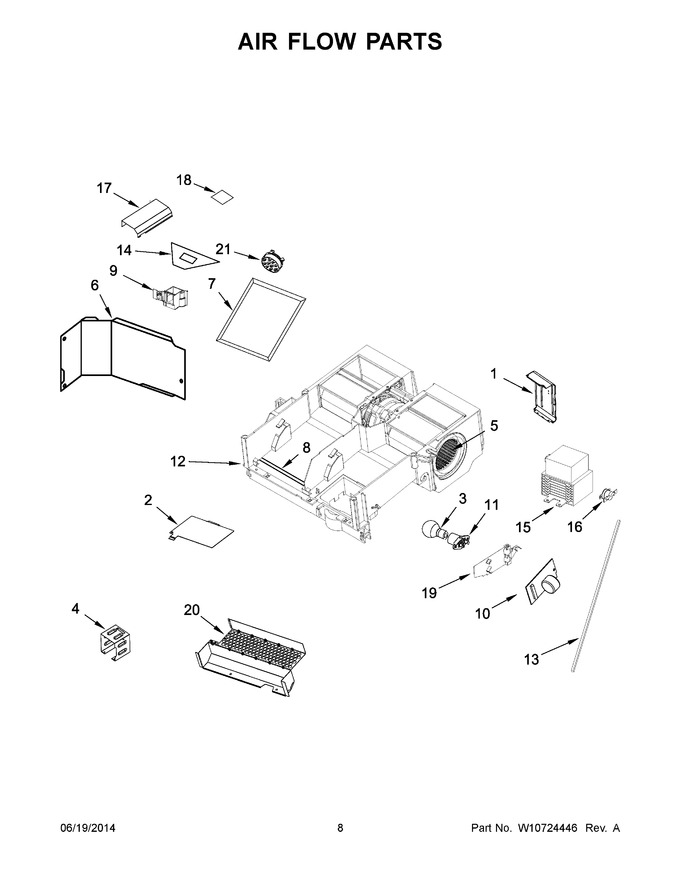

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10631697 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 4 | W10556824 | Housing, Damper |
|
- | |||||
| 5 | W11613599 | Motor, Fan (Replaces: W10479847) |
|
$ 171.78 | |||||
| 6 | W10533116 | Plate, Air Deflector |
|
$ 22.56 | |||||
| 7 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 8 | W10626456 | Seal, Air Guide |
|
- | |||||
| 9 | W10570208 | Outlet, Cavity (front) (for White & White Ice Models) |
|
- | |||||
| 9 | W10627064 | Outlet, Cavity (front) (for Black, Stainless & Black Ice Models) |
|
- | |||||
| 10 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 11 | WPW10210878 | Holder, Lamp Cavity (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 12 | W10533096 | Baseplate, Air Guide |
|
$ 95.65 | |||||
| 13 | W10571180 | Seal, Foam |
|
$ 16.39 | |||||
| 14 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 15 | W10818686 | Magnetron (Replaces: W10626122) |
|
Immediately | $ 221.27 | ||||
| 16 | W10668273 | Thermostat, Magnetron |
|
Immediately | $ 23.30 | ||||
| 17 | W10533111 | Outlet, Cavity (back) |
|
- | |||||
| 18 | W10531724 | Glass, Lamp |
|
Immediately | $ 29.90 | ||||
| 19 | W10533484 | Cover, Duct (right) |
|
- | |||||
| 20 | W10629803 | Shield, Finger (includes Seal) |
|
$ 30.70 | |||||
| 21 | W10557536 | Sensor, Humidity |
|
$ 109.12 |
