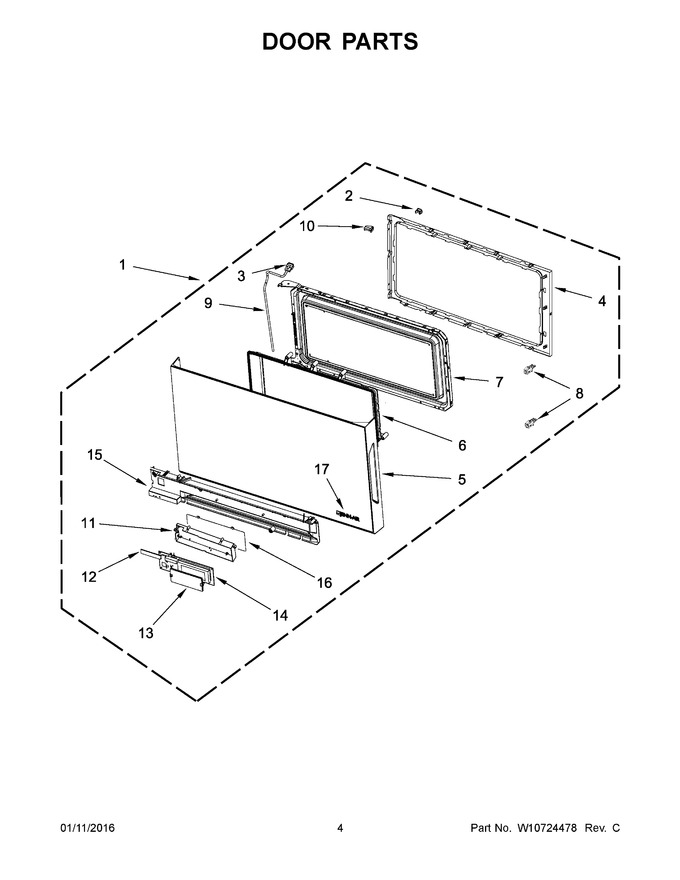

03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10761685		Door, Complete (black)   (Replaces: W10665533)				$ 489.83
2	W10542546		Cover, Screw				$ 76.13
3	W10478659		Holder, Door Cable		Appelez-nous	-
4	W10540764		Frame, Inner				$ 85.24
5	W10594298		Door, Outer (black)				$ 322.61
6	W10478647		Plate, Steam Protection				$ 82.94
7	W10568846		Body, Door (with Glass)				$ 215.51
8	W10740455		Hooks, Door   (Replaces: W10489272)			Immediately	$ 48.17
9	W10658871		Wire, Door Control Cable				$ 24.06
10	W10643976		Stopper, Door		Appelez-nous	-
11	W10478216		Holder, Ui		Appelez-nous	-
12	W10509362		Cable, Sensor		Appelez-nous	-
13	W10540731		Lens		Appelez-nous	-
14	WPW10661210		Control, Door   (Replaces: W10661210)				$ 113.79
15	W10617743		Cover, Ui		Appelez-nous	-
16	W10540298		Plate, Ui Insulation		Appelez-nous	-
17	WPW10214168		Badge (black)   (Replaces: W10190724)				$ 73.67
17A	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 73.67
1A	W10665534		Door, Complete (stainless)				$ 655.61
5A	W10594302		Door, Outer (stainless)				$ 343.12
