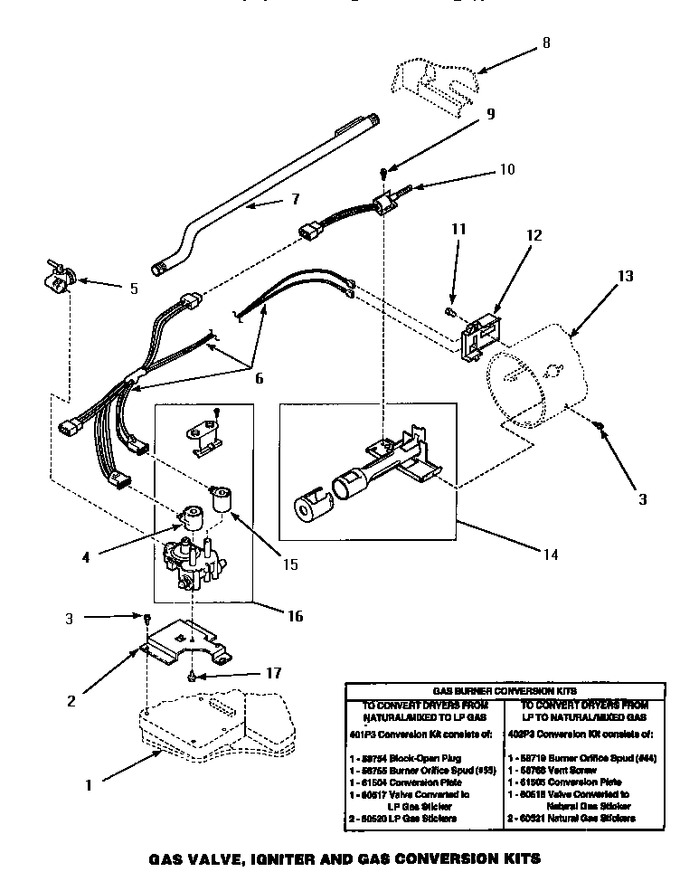

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Base -- (see Cabinet Page)		Appelez-nous	-
2	500821		Bracket, Mounting		Appelez-nous	-
3	WP3390631		Screw, 10b-16 X .34   (Replaces: 501668)				$ 7.04
4	58804A		Booster & Holding Coil			Immediately	$ 28.02
5	Y56229		Valve,elbow Shut-off		Appelez-nous	-
6	60641		Assy,wire Harness-gas		Appelez-nous	-
7	500647		Pipe, Lead-in		Appelez-nous	-
8	Y00000000		See Note Cabinet -- (see Cabinet Page)		Appelez-nous	-
9	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
10	WP37001308		Igniter & Bracket Assembly   (Replaces: 60868)			Immediately	$ 67.52
11	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
12	WP338906		Sensor, Flame   (Replaces: Y56231)			Immediately	$ 46.72
13	Y00000000		See Note Burner Housing -- (see Heater Box Assembly Original Page)		Appelez-nous	-
14	Y56234		Assembly, Burner		Appelez-nous	-
15	279834		Coil, Secondary   (Replaces: 58804B)			Immediately	$ 29.57
16	58804		Assy,valve-gas-single-		Appelez-nous	-
17	WP489128		Screw, 8t-32x3/8 He   (Replaces: 56124)				$ 9.79
NI	402P3		Kit,conversion-ng				$ 56.93
NI	61504		Conversion Plate		Appelez-nous	-
NI	60517		Valve Converted To Lp Gas Stic		Appelez-nous	-
NI	COMM PART		Screw,vent   (Replaces: 58768)		Appelez-nous	-
NI	COMM PART		Plug,block Open   (Replaces: 58754)		Appelez-nous	-
NI	58719		Orifice,screw		Appelez-nous	-
NI	60521		Sticker,ng Or Mixed Gas		Appelez-nous	-
NI	60516		Sticker,valve Converted		Appelez-nous	-
NI	60520		Sticker,lp Gas		Appelez-nous	-
NI	58755		Orifice,lp		Appelez-nous	-
NI	61505		Conversion Plate		Appelez-nous	-
NI	401P3		Kit, Conversion-lp			Immediately	$ 51.40
