Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10529172 Meter Case   (Replaces: W10529172) Special Order $ 345.34

2 W11283272 Assembly, Service Door   (Replaces: 3351136) Special Order $ 95.29

3 WP3954812 Cushion, Meter Case   (Replaces: 3954812) Special Order $ 27.99

4 W10139060 Nut, 1/4-20 Appelez-nous -
5 W11715721 Bolt   (Replaces: 3349065) Special Order $ 6.41

6 3347825 Plate, Mounting Appelez-nous -
7 WPW10139210 Screw   (Replaces: W10139210) Special Order $ 6.75

8 W10841059 Screw   (Replaces: 98445) Appelez-nous -
9 W10133509 Funnel, Coin Special Order $ 74.49

10 W10846503 Jumper-ground, Coin Mechanism   (Replaces: W10623854) Special Order $ 16.77


    View Diagram in Separate Window     Print Icon   Print Part List

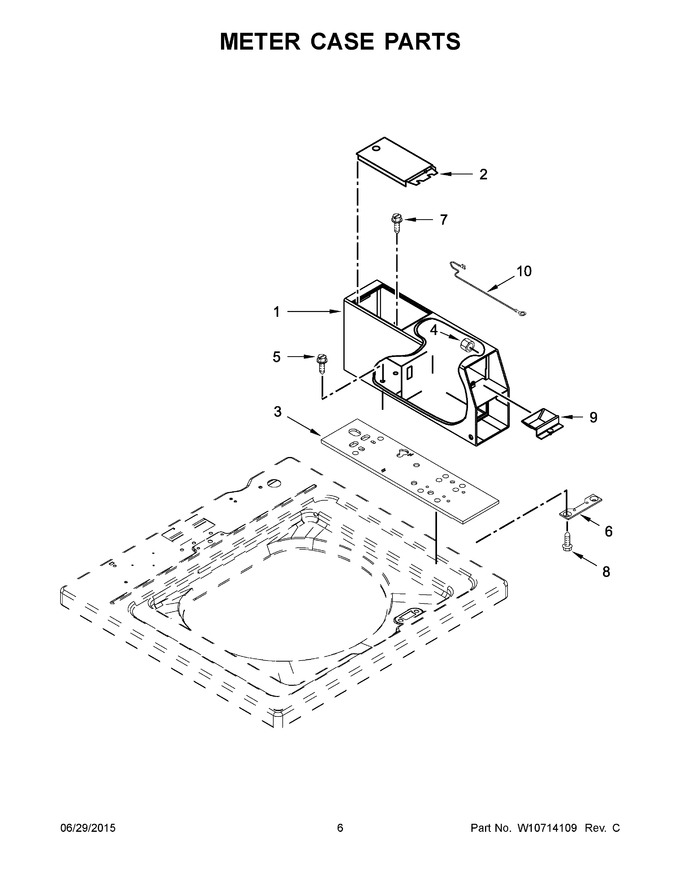

Diagram for MVW18CSBWW0
