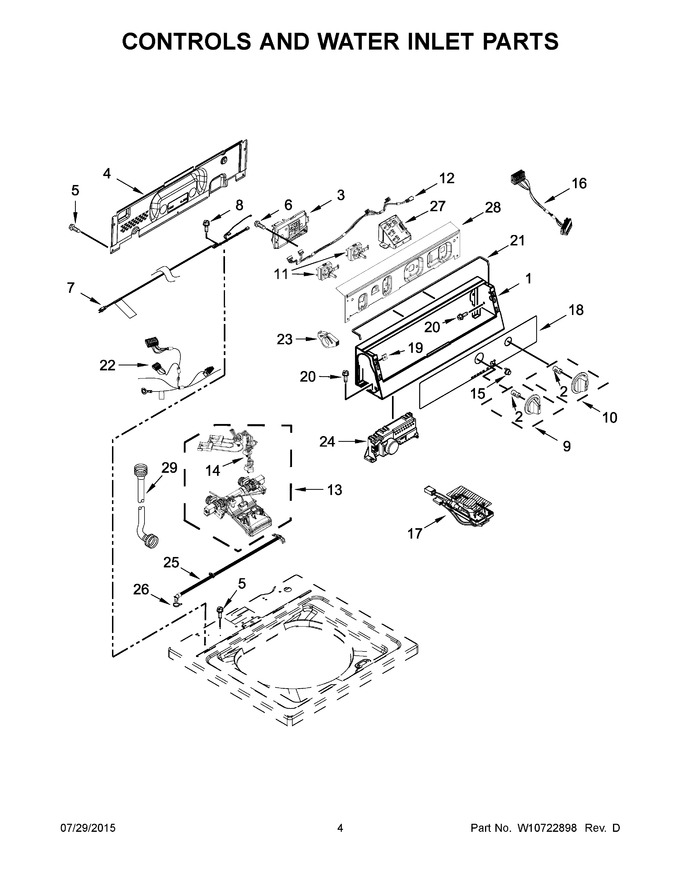

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10461094 | Console |
|
$ 159.97 | |||||
| 2 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 3 | W10884153 | Control Unit Assembly, Machine & Motor (Replaces: W10571742) |
|
$ 225.84 | |||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 308.94 | ||||
| 5 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 7 | W10520399 | Cord, Power |
|
- | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 6.98 | ||||
| 9 | W11103226 | Assembly, Timer Knob (gray) (Replaces: W10133504) |
|
$ 61.07 | |||||
| 10 | W11199426 | Knob & Bumper Assembly (gray) (Replaces: W10461097) |
|
$ 8.32 | |||||
| 11 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 163.26 | ||||
| 12 | W10291184 | Harness, Upper E-star |
|
$ 140.67 | |||||
| 13 | W11179242 | Inlet Assembly, Water (Replaces: W10514372) |
|
Immediately | $ 202.62 | ||||
| 14 | W10520396 | Harness, Valve |
|
- | |||||
| 15 | WPW10461117 | Push Button, Start (Replaces: W10461117) |
|
$ 62.01 | |||||
| 16 | W11296297 | Jumper, Coin Slide Interface (Replaces: W10514456) |
|
$ 7.94 | |||||
| 17 | W10540620 | Line Filter Assembly |
|
- | |||||
| 18 | W10506030 | Fascia |
|
- | |||||
| 19 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 6.94 | |||||
| 20 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.04 | |||||
| 21 | WPW10157932 | Seal, Foam (Replaces: W10157932) |
|
Immediately | $ 7.25 | ||||
| 22 | W10567152 | Harness, Led |
|
- | |||||
| 23 | WPW10663966 | Clamp, Hose (Replaces: W10348582) |
|
$ 192.22 | |||||
| 24 | WPW10482834 | Electronic Release Module (Replaces: W10482834) |
|
Immediately | $ 289.63 | ||||
| 25 | WPW10461189 | Assembly, Hose (Replaces: W10461189) |
|
$ 30.32 | |||||
| 26 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 7.56 | ||||
| 27 | WPW10491734 | Interface, Coin Slide (Replaces: W10491734) |
|
Immediately | $ 48.96 | ||||
| 28 | W10698210 | Back Bracket, Control Panel |
|
- | |||||
| 29 | WPW10489643 | Hose, Water Inlet (hot) (Replaces: W10489643) |
|
$ 70.16 | |||||
| 29A | WPW10489648 | Hose, Water Inlet (cold) (Replaces: W10489648) |
|
$ 69.40 | |||||
| NI | W11384794 | 10a Cord Adaptor (austrailian) (Replaces: W10476818) |
|
- | |||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 24.03 | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 69.35 |
