01 - Cover Sheet

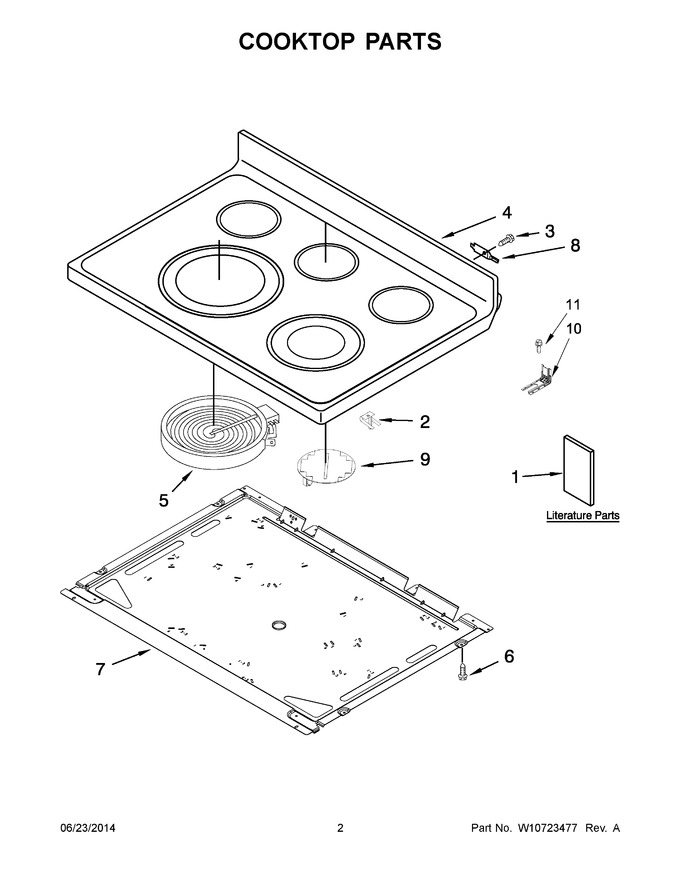

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392959 | Tech Sheet (english) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1 | W10392931 | Use & Care Guide |
|
- | |||||
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10441632 | Tech Sheet (french) |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 4 | W10472036 | Cooktop (white) (Replaces: W10380664) |
|
Immediately | $ 586.23 | ||||
| 4 | W10472035 | Cooktop (black) (Replaces: W10380665) |
|
Immediately | $ 597.98 | ||||
| 5 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 5 | W10823727 | Element (3000/1900w) (left Front) (Replaces: W10162040) |
|
Immediately | $ 293.68 | ||||
| 5 | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 122.99 | ||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 9 | W11047668 | Element, Warm Zone (Replaces: W10388271) |
|
$ 113.96 | |||||
| 10 | W11447673 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.64 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| NI | W10629314 | Harness, Main |
|
$ 137.77 | |||||
| NI | W11172424 | Harness, Sensor (Replaces: W10083650) |
|
$ 97.52 | |||||
| NI | W11134594 | Harness, Warm Zone (Replaces: W10278580) |
|
$ 165.19 | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.25 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11188418 | Harness, Cooktop Left (Replaces: W10349682) |
|
$ 191.46 | |||||
| NI | W11188421 | Harness, Wire (cooktop Right) (Replaces: W10349696) |
|
Immediately | $ 183.65 |
