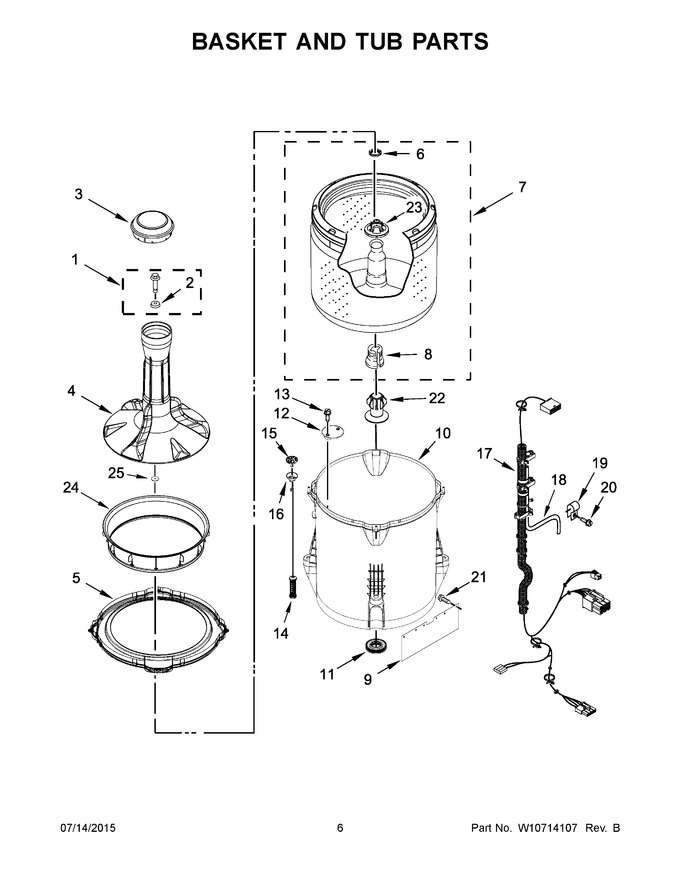

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.72 | ||||
| 2 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 3 | W11190827 | Cap, Agitator (Replaces: W10424292) |
|
$ 27.23 | |||||
| 4 | W10772620 | Impeller (Replaces: W10424311) |
|
Immediately | $ 85.46 | ||||
| 5 | WPW10461196 | Ring, Tub (Replaces: W10461196) |
|
Immediately | $ 158.83 | ||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 7 | W10738339 | Basket Assembly (Replaces: W10389330) |
|
$ 239.27 | |||||
| 8 | W11084139 | Block, Basket Drive (Replaces: W10198148) |
|
Immediately | $ 15.37 | ||||
| 9 | W10339098 | Shield, Splash |
|
$ 22.16 | |||||
| 10 | W10371566 | Tub (includes Tub Seal) (Replaces: W10238320) |
|
$ 305.43 | |||||
| 11 | W10579816 | Seal, Tub (Replaces: W10424291) |
|
$ 80.31 | |||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 55.94 | |||||
| 13 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 7.04 | ||||
| 14 | W10780046 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Balls And Suspension Bushings) (Replaces: W10748950) |
|
Immediately | $ 154.19 | ||||
| 15 | W10583768 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) |
|
- | |||||
| 16 | W10256551 | Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) |
|
- | |||||
| 17 | W10861643 | Harness, Lower (includes Pressure Hose & Cable Tie) (Replaces: W10472988) |
|
$ 106.87 | |||||
| 18 | WP353244 | Hose, Pressure Switch (Replaces: W10531633) |
|
Immediately | $ 53.94 | ||||
| 19 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.17 | ||||
| 20 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.20 | ||||
| 21 | W10429200 | Retainer, Push-in |
|
- | |||||
| 22 | W11084129 | Collar, Alignment (Replaces: W10424298) |
|
Immediately | $ 22.48 | ||||
| 23 | W10461124 | Ring, Labryinth (item Not Included With Basket Assembly) |
|
$ 43.64 | |||||
| 24 | W11222084 | Adapter, Balance Ring (Replaces: W10424289) |
|
Immediately | $ 62.44 | ||||
| 25 | W10832827 | Rubber Washer, Impeller (Replaces: W10755559) |
|
- |
