01 - Cover Sheet

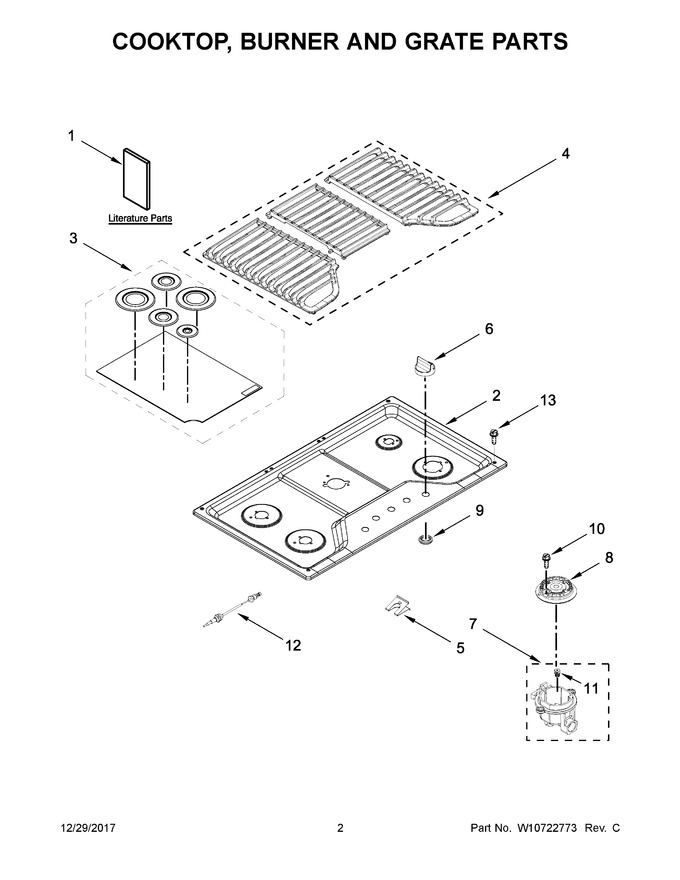

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11116971 | Instructions, Installation |
|
- | |||||
| 2 | W10597086 | Cooktop (black) |
|
- | |||||
| 3 | W10832694 | Kit, Burner Cap (black) (Replaces: W10597133) |
|
$ 127.20 | |||||
| 4 | W11177674 | Kit, Grate (black) (Replaces: W10594442) |
|
- | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 6 | W10826855 | Knobs, Cooktop (black) (Replaces: W10594479) |
|
Immediately | $ 20.20 | ||||
| 7 | W10594402 | Holder,orifice (9.1k) (left Front & Left Rear) |
|
$ 61.77 | |||||
| 8 | WP8286814 | Head, Burner (left Front & Left Rear) (Replaces: 8286814) |
|
$ 106.79 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 7.81 | |||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.02 | ||||
| 11 | W10652710 | Orifice (left Front & Left Rear) |
|
$ 23.37 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front, Right Front & Center) (Replaces: W10541842) |
|
$ 52.13 | |||||
| 13 | W11699921 | Screw (Replaces: W10758282) |
|
$ 12.66 | |||||
| 11A | W10791079 | Orifice (right Front) (Replaces: W10409144) |
|
$ 80.11 | |||||
| 11B | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 77.40 | |||||
| 11C | W10791073 | Orifice (center) (Replaces: W10609592) |
|
$ 80.11 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear & Right Rear) (Replaces: W10541843) |
|
Immediately | $ 52.19 | ||||
| 1A | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W11120470 | Guide, Use & Care |
|
- | |||||
| 1C | W11117755 | Instructions, Lp Conversion |
|
- | |||||
| 2A | W10597087 | Cooktop (white) |
|
- | |||||
| 2B | W11168400 | Cooktop (stainless) (Replaces: W10597088) |
|
- | |||||
| 6A | W10594480 | Knobs, Cooktop (white) |
|
$ 23.27 | |||||
| 6B | WPW10646805 | Knobs, Cooktop (stainless) (Replaces: W10646805) |
|
$ 73.79 | |||||
| 7A | W10597159 | Holder, Orifice (12k) (right Front) |
|
$ 62.10 | |||||
| 7B | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 33.26 | |||||
| 7C | W10609591 | Holder, Orifice (15k) (center) |
|
$ 62.03 | |||||
| 8A | WP8286815 | Head, Burner (right Front & Center) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 8B | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 9A | W10614849 | Grommet (grey) |
|
- | |||||
| NI | W10676661 | Kit, Lp Conversion |
|
$ 36.11 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | WP3801F935-51 | Bracket, Tie Down (Replaces: 3801F935-51) |
|
$ 37.09 | |||||
| NI | W10392003 | Cord, Power |
|
$ 138.57 | |||||
| NI | WP7101P062-60 | Screw (for Tie Down Bracket) (Replaces: 7101P062-60) |
|
$ 7.24 | |||||
| NI | W11561443 | Harness, Main (Replaces: W10868535) |
|
$ 54.68 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
