01 - Cover Sheet

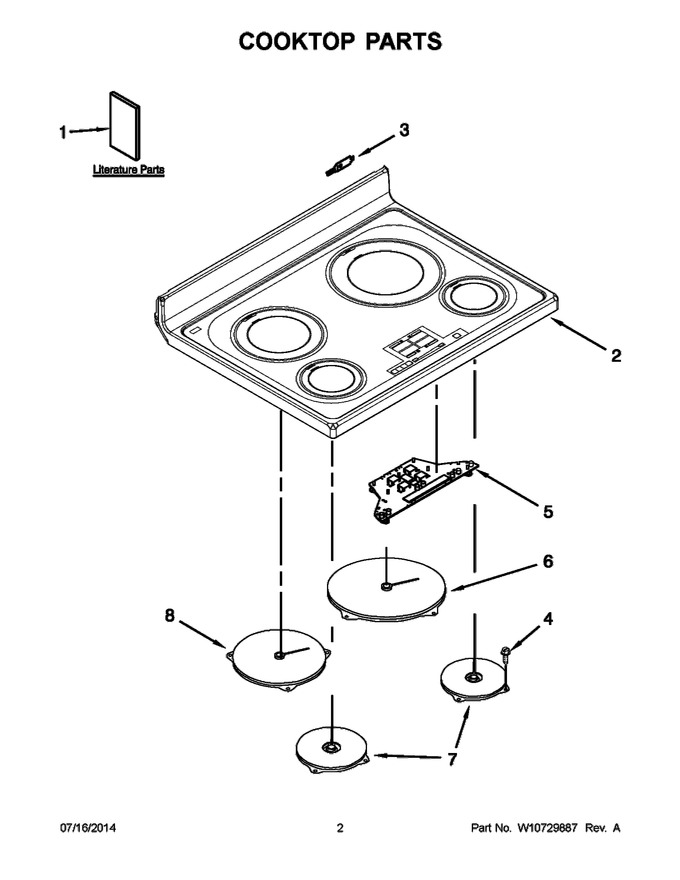

02 - Cooktop Parts


03 - Interior Parts


04 - Control Panel Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	W10514689		Cooktop (black)   (Replaces: W10401389)				$ 642.45
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.30
4	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
5	W10818314		Board, Display Ui-g8   (Replaces: W10390744)				$ 293.64
6	WPW10410578		Hotplate (right Rear)   (Replaces: W10410578)				$ 277.41
7	WPW10410580		Hotplate (left Front & Right Front)   (Replaces: W10410580)				$ 219.30
8	WPW10410579		Hotplate (left Rear)   (Replaces: W10410579)				$ 231.72
1A	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1B	W10392934		Guide, Use & Care		Appelez-nous	-
1C	W10441306		Tech Sheet (induction)		Appelez-nous	-
1D	W10392954		Tech Sheet		Appelez-nous	-
1E	W10400064		Guide, Quick Start (english)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10629299		Harness, Main		Appelez-nous	-
NI	W10324944		Harness, Sensor				$ 26.89
NI	W10324946		Harness, Wire (drawer)				$ 24.89
NI	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
