01 - Cover Sheet

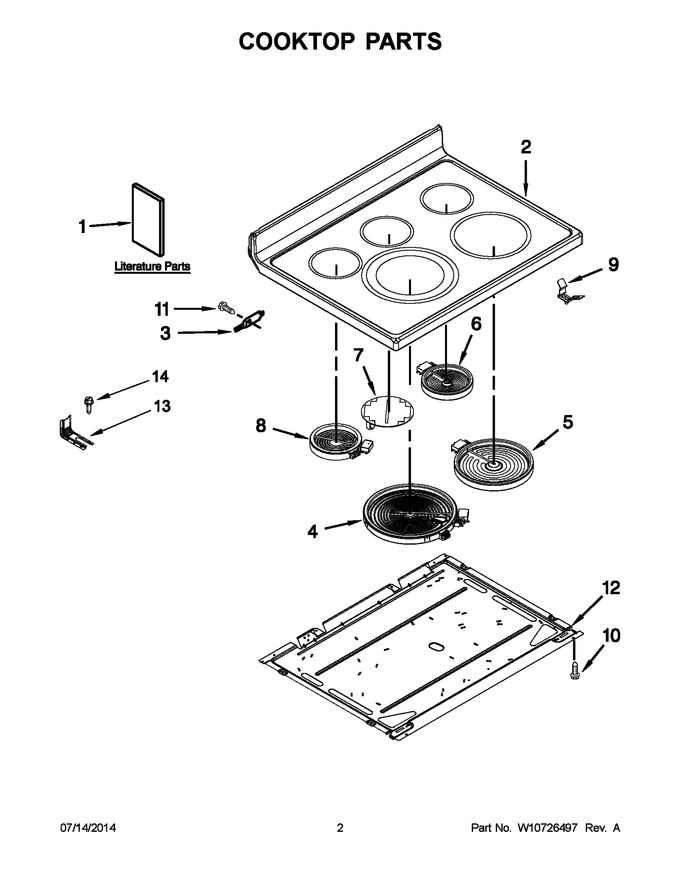

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10524727 | Use And Care Guide |
|
- | |||||
| 2 | W10524411 | Cooktop (white) (Replaces: W10380674) |
|
$ 555.82 | |||||
| 3 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 4 | W10823727 | Element (3000/1900w) (left Front) (Replaces: W10162040) |
|
Immediately | $ 293.68 | ||||
| 5 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 7 | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 113.96 | |||||
| 8 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 11 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 12 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 122.99 | ||||
| 13 | W11447673 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.64 | ||||
| 14 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 1A | W10478474 | Tech Sheet (english) |
|
- | |||||
| 1B | W10478478 | Literature Parts |
|
- | |||||
| 1C | W10403812 | Instructions, Installation |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1G | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 2A | W10380675 | Cooktop (black) |
|
- | |||||
| NI | W11188421 | Harness, Wire (cooktop Right) (Replaces: W10349696) |
|
Immediately | $ 183.65 | ||||
| NI | W10349721 | Harness, Wire (cooktop Left) |
|
$ 52.52 | |||||
| NI | W10629307 | Harness, Main |
|
- | |||||
| NI | W11212183 | Harness, Sensor (Replaces: W10349640) |
|
$ 201.98 | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 100.51 | |||||
| NI | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
