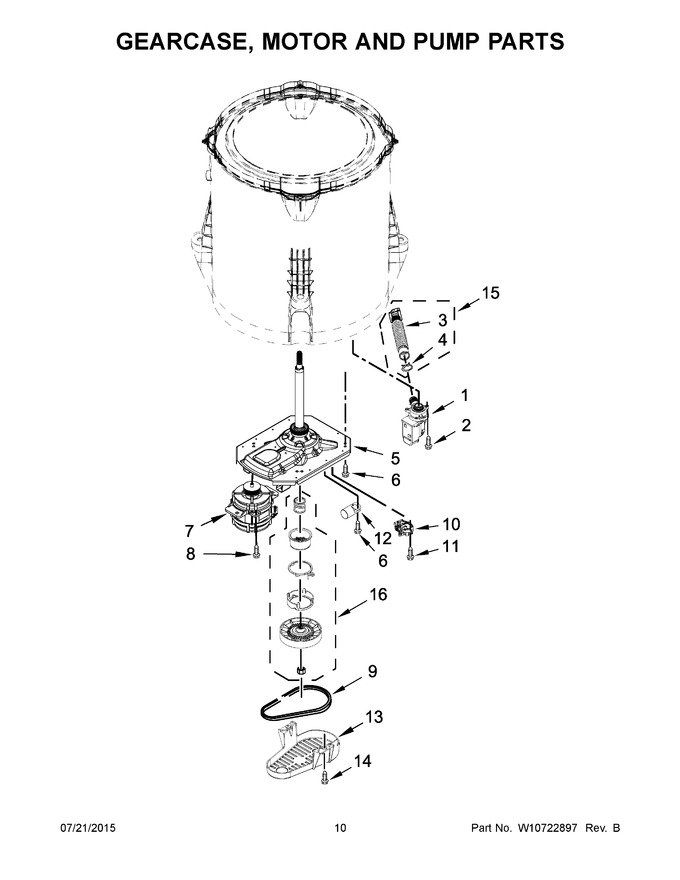

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292579 | Pump Assembly, Drain (Replaces: W10292579) |
|
Immediately | $ 281.88 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.16 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10215091) |
|
Immediately | $ 30.67 | ||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 30.67 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.55 | ||||
| 5 | W11159068 | Assembly, Gearcase (Replaces: W10521293) |
|
Immediately | $ 372.86 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.47 | ||||
| 7 | WPW10490820 | Motor, Drive (Replaces: W10490820) |
|
$ 158.15 | |||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 12.69 | |||||
| 9 | WPW10006388 | Belt, Drive (Replaces: W10006388) |
|
$ 80.05 | |||||
| 9 | W10721967 | Spring, Splutch (includes Items 10, 11, 12 And 13) (Replaces: W10006382) |
|
Immediately | $ 50.11 | ||||
| 10 | W11336577 | Actuator, Shift (Replaces: W10424309) |
|
$ 152.67 | |||||
| 10 | W10721967 | Slider, Splutch (includes Items 9, 11, 12 And 13) (Replaces: W10239971) |
|
Immediately | $ 50.11 | ||||
| 11 | W10721967 | Cam Ring, Splutch (includes Items 9, 10, 12 And 13) (Replaces: W10006353) |
|
Immediately | $ 50.11 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.20 | |||||
| 12 | W11205047 | Capacitor, Motor Run (Replaces: W10456703) |
|
$ 199.85 | |||||
| 12 | W10721967 | Cam, Splutch (includes Items 9, 10, 11 And 13) (Replaces: W10006354) |
|
Immediately | $ 50.11 | ||||
| 13 | W10759993 | Pulley (Replaces: W10669594) |
|
Immediately | $ 35.28 | ||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 42.67 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.04 | ||||
| 14 | W10759923 | Nut, Pulley (Replaces: W10604214) |
|
$ 6.88 | |||||
| 15 | WPW10006388 | Belt, Drive (Replaces: W10006388) |
|
$ 80.05 | |||||
| 15 | W10899966 | Hose, Inner Drain Assembly Complete (Replaces: W10444123) |
|
Immediately | $ 30.67 | ||||
| 16 | W10759993 | Splutch Kit (50 Hz) |
|
Immediately | $ 35.28 | ||||
| 16 | W11336577 | Actuator, Shift (Replaces: W10424309) |
|
$ 152.67 | |||||
| 17 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.20 | |||||
| 18 | W11205047 | Capacitor, Motor Run (Replaces: W10456703) |
|
$ 199.85 | |||||
| 19 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 42.67 |
