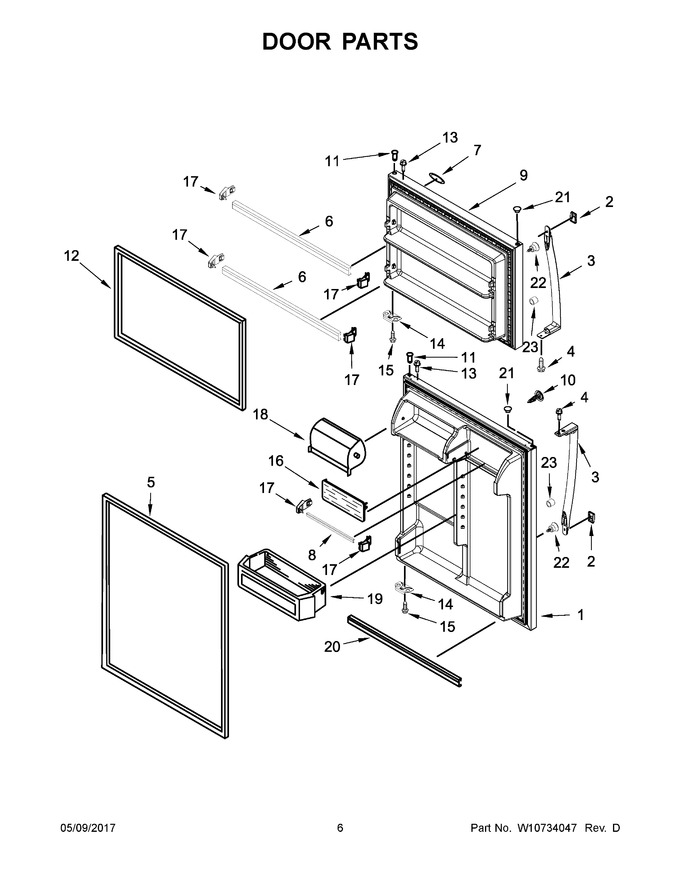

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023679 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10599404) |
|
$ 650.01 | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 25.64 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 170.17 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.47 | ||||
| 5 | W10860480 | Door Gasket, Magnetic (white) (Replaces: W10692652) |
|
$ 265.49 | |||||
| 6 | W11596065 | Trim, Door (Replaces: W10720452) |
|
$ 84.22 | |||||
| 7 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 8 | W11678258 | Trim, Door (Replaces: W10720455) |
|
$ 75.55 | |||||
| 9 | W11023679 | Freezer Door (includes Illustration 12) (white) (Replaces: W10599407) |
|
$ 650.01 | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 7.18 | |||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 12 | W10741118 | Door Gasket, Magnetic (white) (Replaces: W10692653) |
|
$ 284.60 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 16 | WP2188236 | Door, Flip (Replaces: 2188236) |
|
$ 55.18 | |||||
| 17 | WP2195916K | Cap, Door Trim End (Replaces: 2195916) |
|
Immediately | $ 11.30 | ||||
| 18 | W11617783 | Compartment Door (Replaces: W10385897) |
|
$ 65.39 | |||||
| 19 | W10803530 | Bin, Door (Replaces: W10582649) |
|
$ 60.21 | |||||
| 20 | W10859818 | Trim, Shelf (Replaces: W10720448) |
|
- | |||||
| 21 | WP2212648 | Plug, Hinge (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 22 | WPW10170540 | Screw Wrt311fzdm00 (Replaces: W10170540) |
|
Immediately | $ 7.66 | ||||
| 23 | WPW10511911 | Bushing, Handle Wrt311fzdm00 (Replaces: W10511911) |
|
$ 13.81 | |||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 16.75 | |||||
| 10B | W10830981 | Hole Plug (biscuit) (Replaces: W10663738) |
|
- | |||||
| 10C | W10830982 | Hole Plug (grey) (Replaces: W10663739) |
|
Immediately | $ 16.75 | ||||
| 12A | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 287.41 | |||||
| 12B | 2159060 | Door Gasket, Magnetic (beige) (Replaces: 2214967) |
|
$ 288.01 | |||||
| 12C | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 239.23 | ||||
| 1A | W11023687 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10599396) |
|
$ 690.38 | |||||
| 1B | W11023688 | Refrigerator Door (includes Illustration 5) (biscuit/bisque) (Replaces: W10679333) |
|
- | |||||
| 1C | LW10642551 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10642551) |
|
- | |||||
| 21A | WP2212651 | Plug, Hinge (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 21B | WP2212649 | Plug, Hinge (biscuit) (Replaces: 2212649) |
|
$ 6.85 | |||||
| 21C | WP2254517 | Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 2A | W10838316 | Handle, Trim (black) (Replaces: W10672339) |
|
$ 26.64 | |||||
| 2B | W10672341 | Handle, Trim (biscuit) |
|
- | |||||
| 2C | W11519504 | Handle, Trim (grey) (Replaces: W10864206) |
|
Immediately | $ 43.23 | ||||
| 3A | WPW10672334 | Handle, Door (black) (Replaces: W10672334) |
|
$ 194.86 | |||||
| 3B | W10859918 | Handle, Door (biscuit) (Replaces: W10672336) |
|
- | |||||
| 3C | W10806512 | Handle, Door (stainless) (Replaces: W10653470) |
|
Immediately | $ 180.94 | ||||
| 5A | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 283.67 | |||||
| 5B | 2159061 | Door Gasket, Magnetic (beige) (Replaces: 2202875) |
|
Immediately | $ 165.30 | ||||
| 5C | W10249195 | Door Gasket, Magnetic (grey) (Replaces: W10171475) |
|
$ 287.83 | |||||
| 7A | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 9A | W11023687 | Freezer Door (includes Illustration 12) (black) (Replaces: W10599399) |
|
$ 690.38 | |||||
| 9B | W11023688 | Freezer Door (includes Illustration 12) (biscuit/bisque) (Replaces: W10679336) |
|
- | |||||
| 9C | LW10642554 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10642554) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11416038 | Door Reversal Kit, White Model (Replaces: W10662124) |
|
$ 71.35 | |||||
| NI | W11415957 | Door Reversal Kit, Black Model (Replaces: W10676239) |
|
$ 68.95 | |||||
| NI | W10691128 | Door Reversal Kit, Biscuit Model |
|
- | |||||
| NI | W10676240 | Door Reversal Kit Stainless Model |
|
$ 96.46 |
