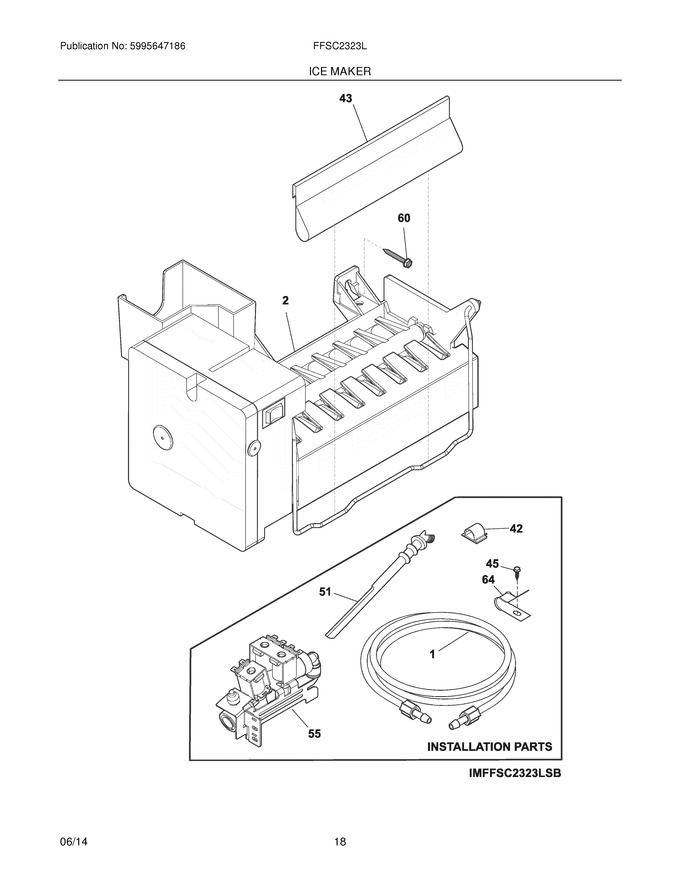

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube,water ,62`` ,natural ,door |
|
Immediately | $ 20.56 | ||||
| 42 | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| 43 | 241720601 | Extension |
|
$ 20.56 | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 51 | 241796406 | Tube-water Fill,extension |
|
$ 19.85 | |||||
| 64 | 5304455846 | Clamp,0.31 Id ,steel ,copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| F2 | 5303918344 | Ice Maker,radius Cube ,115 V ,no Instl Parts (Replaces: 241709801) |
|
Immediately | $ 178.39 | ||||
| F55 | 242252702 | Valve,solenoid ,triple |
|
Immediately | $ 132.71 | ||||
| FNI | 241522901 | Harness-wiring,icmkr/container |
|
$ 109.86 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 242220206 | Tube-water Inlet,.315 - 97.50`` ,brown/tan |
|
$ 46.78 | |||||
| NI | 241583301 | Deflector-air,ice Maker |
|
$ 46.78 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker (Replaces: 240561702) |
|
Immediately | $ 20.56 | ||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NI | 218976421 | Tube-water Inlet,valve To Door |
|
$ 20.56 | |||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 6.38 |
