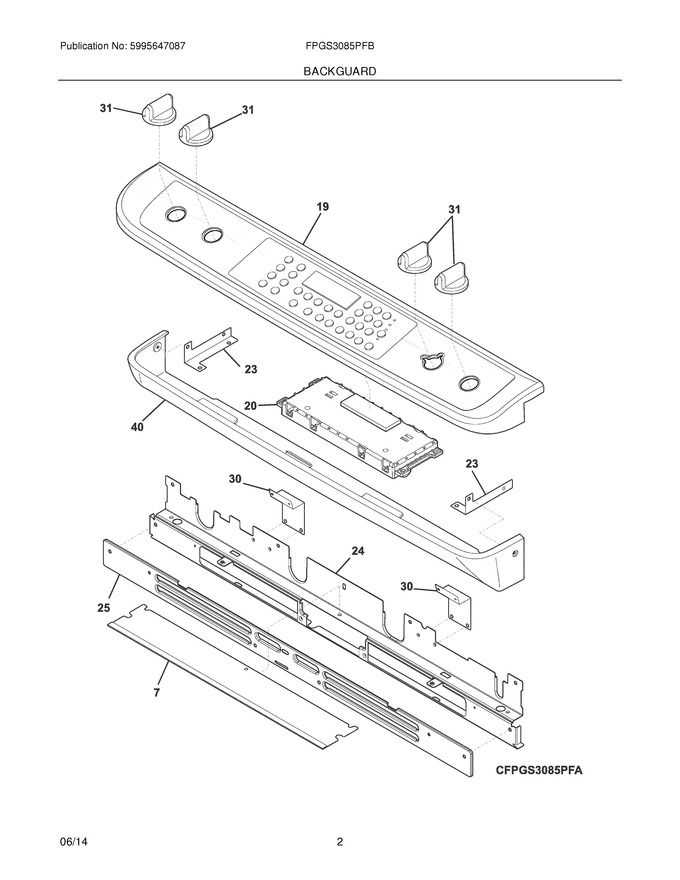

03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 318591300 | Deflector,wire |
|
- | |||||
| 23 | 318921300 | Bracket,control Mtg ,(2) |
|
$ 17.64 | |||||
| 24 | 139074901 | Frame,vent Trim ,black |
|
- | |||||
| 25 | 139075001 | Cover,vent Trim ,black |
|
$ 60.52 | |||||
| 30 | 318928502 | Bracket,control Panel ,rear ,(2) (Replaces: 318928500) |
|
$ 15.60 | |||||
| 31 | 316564411 | Knob,control ,stainless |
|
$ 131.03 | |||||
| 40 | 318912907 | Panel,service ,silver |
|
$ 302.40 | |||||
| F19 | 139059410 | Panel Assembly,control ,stainless ,w/overlay-trim |
|
$ 696.36 | |||||
| F20 | 5304503603 | Controller,electronic ,es530w5 (Replaces: 316560177) |
|
$ 367.25 | |||||
| FNI | 807527001 | Harness,wiring ,display |
|
- | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
