New Model Search:

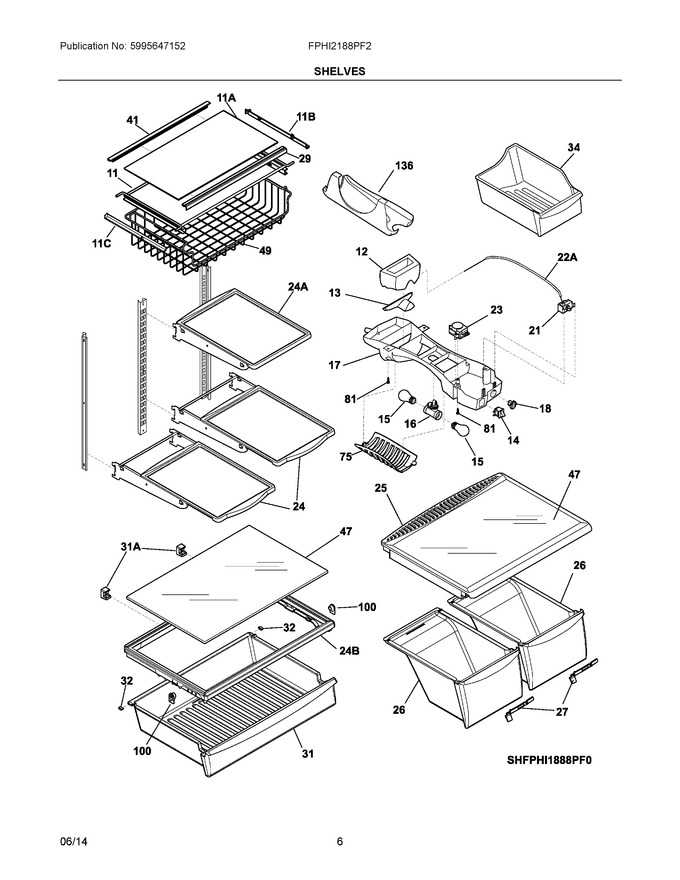

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242087803 | Frame-shelf, Full Width |
|
- | |||||
| 12 | 240545901 | Diffuser-air, Top |
|
$ 70.16 | |||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 240364201 | Socket-light/lamp, Dual |
|
$ 100.50 | |||||
| 17 | 240368105 | Box-control, Front |
|
Immediately | $ 130.44 | ||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature (Replaces: 5304445058) |
|
Immediately | $ 72.31 | ||||
| 23 | 215846604 | Timer-defrost (Replaces: 241809402) |
|
Immediately | $ 24.58 | ||||
| 24 | 240350143 | Shelf-"spill-safe", Cantilever, Sliding |
|
$ 179.24 | |||||
| 25 | 242201803 | Cover-crisper Pan |
|
$ 123.17 | |||||
| 26 | 242218506 | Pan, Crisper, (2), W/humid Cntl (Replaces: 242218504) |
|
$ 119.78 | |||||
| 27 | 242215901 | Slide, Humidity Contrl |
|
$ 18.95 | |||||
| 29 | 242110902 | Trim-shelf, Front |
|
$ 34.97 | |||||
| 31 | 242322203 | Meat Pan, Fw Pantry, W/slide Clips |
|
$ 258.92 | |||||
| 32 | 240349801 | Clip-slide, Pan |
|
$ 20.48 | |||||
| 34 | 240385201 | Container, Ice Bin |
|
$ 97.83 | |||||
| 41 | 242111002 | Trim-shelf, Rear |
|
- | |||||
| 47 | 240350609 | Insert-pan Cover, Glass |
|
Immediately | $ 162.30 | ||||
| 49 | 241833201 | Basket-sliding, Full Sliding, Wire, Frzr |
|
- | |||||
| 75 | 240412701 | Shield, Light (Replaces: 240412702) |
|
$ 16.30 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 19.13 | |||||
| 136 | 241657701 | Dispenser-can, White |
|
$ 57.41 | |||||
| 11A | 242087901 | Glass-shelf, Full Shelf |
|
- | |||||
| 11B | 241848701 | Cover, Hanger Rh, Wire Basket |
|
- | |||||
| 11C | 241848702 | Cover, Hanger Lh, Wire Basket |
|
- | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White |
|
$ 9.10 | |||||
| 24A | 240355261 | Shelf-"spill-safe", Fixed |
|
$ 168.53 | |||||
| 24B | 242205404 | Cover, Deli Pan, Full Width (Replaces: 242205402) |
|
$ 116.03 | |||||
| 31A | 242205501 | Support-shelf, Fw Pantry, Rear |
|
$ 16.28 | |||||
| NI | 807407006 | Label, Energy Guide |
|
- | |||||
| NIA | 5304455649 | Screw, Pan Hd, 6-20 X 0.438 |
|
$ 17.01 | |||||
| NIA | 5304535377 | Tape, Aluminum, 3" Wide (Replaces: 240570304) |
|
$ 31.36 | |||||
| NIA | 5303299664 | Spacer, Shelf |
|
$ 24.10 | |||||
| NIB | 240568606 | Seal (Replaces: 240568607) |
|
$ 12.76 | |||||
| NIBA | 240362101 | Clip-slide, Cover |
|
$ 47.03 | |||||
| NIBB | 241872203 | Support-beam |
|
$ 53.85 | |||||
| NIC | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 80.09 |
