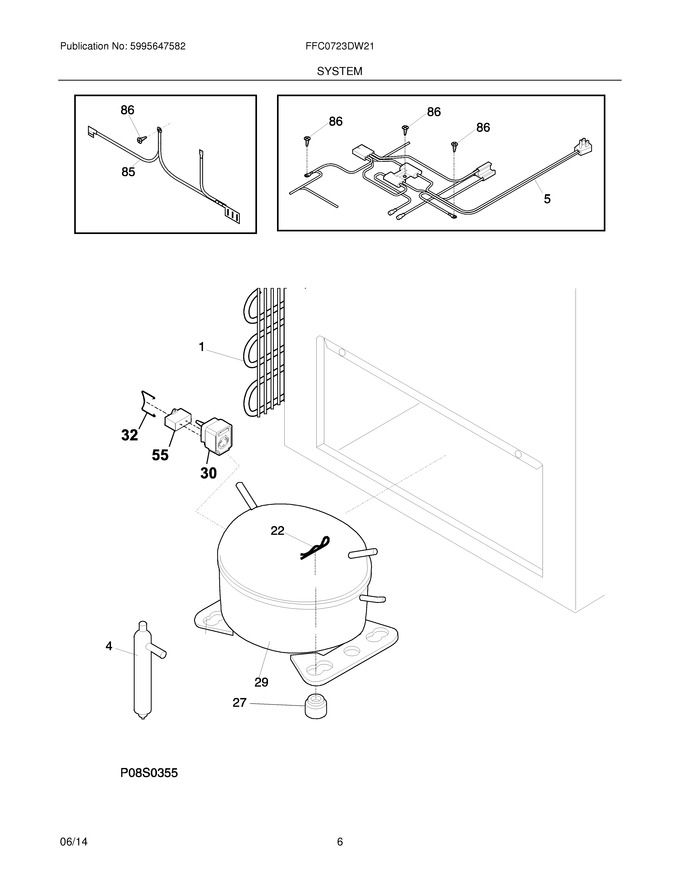

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297400701 | Condenser |
|
- | |||||
| 4 | 5303305677 | Filter-dryer (Replaces: 216987501) |
|
Immediately | $ 31.67 | ||||
| 5 | 297346801 | Harness,wiring ,main |
|
$ 64.74 | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216337701 | Screw,hwh ,10-24 X 0.500 ,swage |
|
$ 14.41 | |||||
| 29 | 5304507767 | Compressor,w/grommets (Replaces: 297199800) |
|
$ 726.41 | |||||
| 30 | 216954217 | Controller |
|
$ 95.68 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 55 | 216985011 | Capacitor-run,10 Mf |
|
$ 27.64 | |||||
| 85 | 216818300 | Wire-ground |
|
- | |||||
| 86 | 216707801 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- |
