SELECT A DIAGRAM
01 - Cover
03 - Doors
05 - Cabinet
07 - Shelves
09 - System

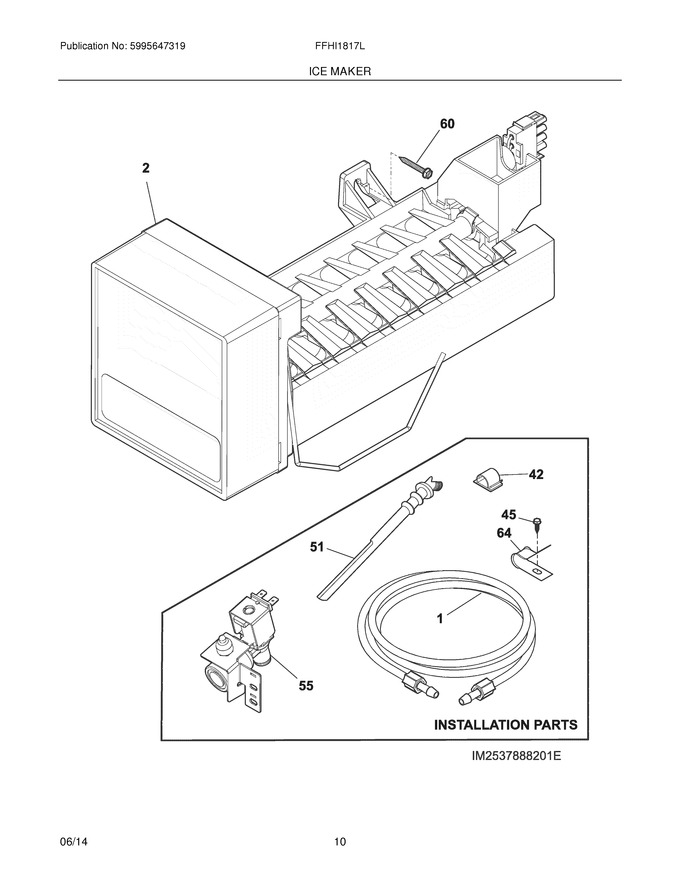

11 - Ice Maker
12 - Wiring Schematic
13 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976921 | Tube-water Inlet,valve To I.m. |
|
- | |||||
| 2 | 241798231 | Ice Maker,radius Cube ,service ,115 V ,complete (Replaces: 241798201) |
|
Immediately | $ 200.97 | ||||
| 42 | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 51 | 241796405 | Tube-water,ice Mold Fill ,extension (Replaces: 241523501) |
|
$ 18.43 | |||||
| 55 | 242252603 | Valve-water,solenoid Assy |
|
Immediately | $ 73.14 | ||||
| 60 | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) |
|
$ 12.05 | |||||
| 64 | 5304455846 | Clamp,.31 Id ,steel ,water Tube |
|
$ 10.63 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 20.56 | ||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 34.73 |
