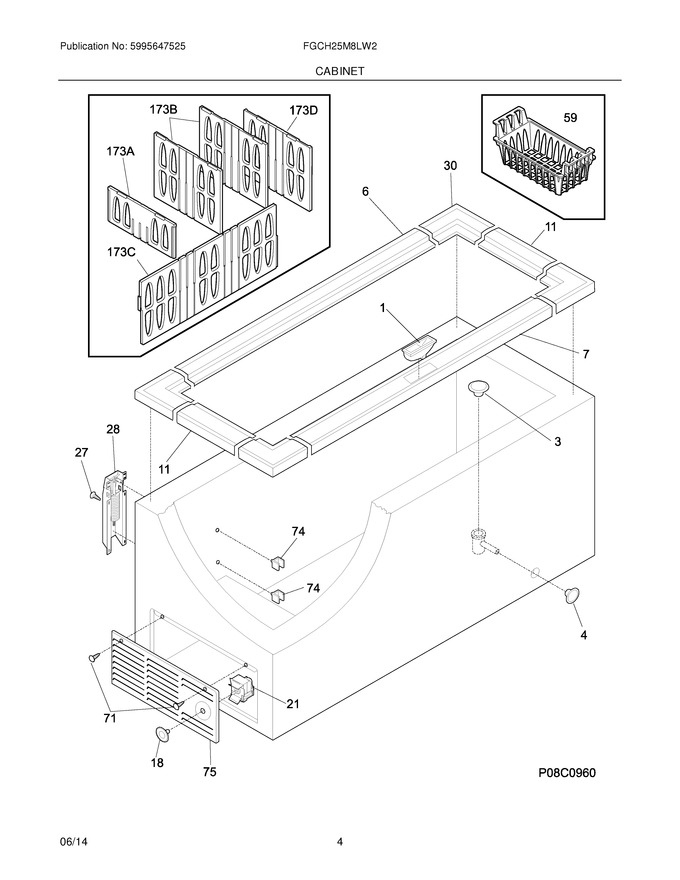

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug,drain ,interior			Immediately	$ 17.35
4	297013600		Plug,drain ,exterior				$ 9.98
6	216955517		Breaker-hinge Side,white				$ 44.05
7	297129500		Breaker,lock Side ,w/lock Catch				$ 51.29
11	216955500		Breaker,chest End ,(2)				$ 15.75
18	216707200		Knob,temp Control				$ 44.10
21	297216030		Control-temperature				$ 94.98
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
28	297322100		Hinge,assy			Immediately	$ 88.60
30	216110700		Breaker,corners				$ 28.45
59	216916203		Basket,blue/gray ,upper				$ 63.95
71	5303302714		Screw,no.8-18 X .75		Appelez-nous	-
74	216486700		Support,divider ,(4)				$ 51.40
75	216034301		Panel,access ,white				$ 103.01
173	297073101		Divider,divider End				$ 313.84
173	297063303		Divider				$ 114.54
173	297063101		Divider,small Chest				$ 115.97
173	297063001		Divider,chest,step				$ 33.02
NI	5303321319		Paint,touch-up ,white   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297090506		Energy Guide		Appelez-nous	-
