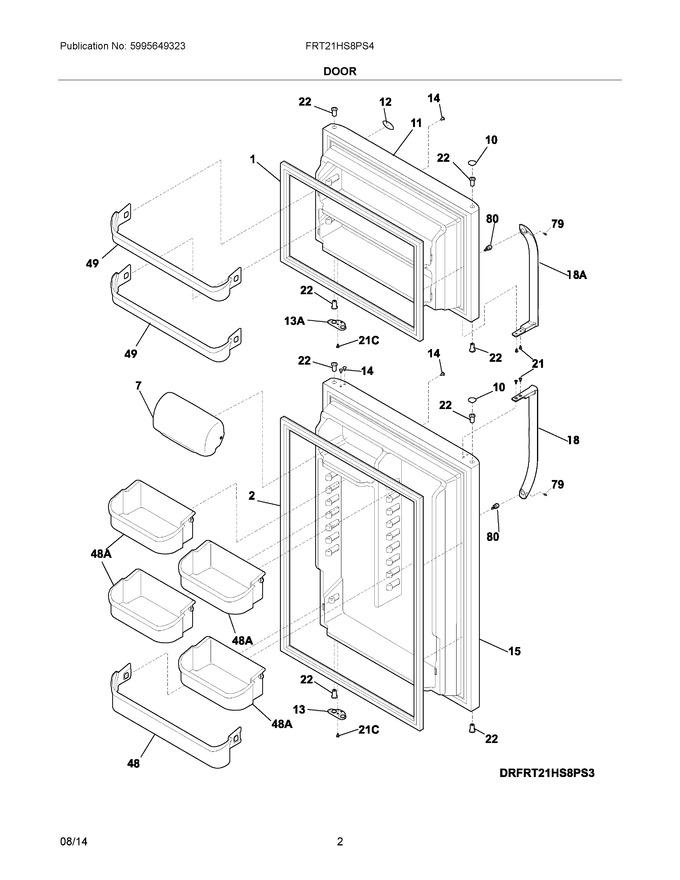

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door, Black, Magnetic				$ 187.11
2	242193214		Gasket-frzr Door, Black, Magnetic				$ 190.85
7	240338313		Door, Dairy, Clear   (Replaces: 240338303)			Immediately	$ 80.80
10	240381307		Plug-button, Silver Mist, Hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 16.69
11	242178015		Door-frzr, Stainless, Complete Assy				$ 507.56
12	242016301		Nameplate, Frigidaire				$ 4.26
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 15.17
14	240494006		Plug-button, Silver Mist				$ 19.69
15	242178120		Door-refr, Stainless, Complete Assy				$ 294.23
18	242075501		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 242075202)				$ 233.58
22	215774918		Plug-button, Black, Upr Hinge Holes				$ 9.86
48	240338101		Bin-door			Immediately	$ 52.37
49	240495804		Bin-door, Pseudo, Frzr			Immediately	$ 43.29
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	242075501		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 242075201)				$ 233.58
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door, Gallon   (Replaces: 240338202)			Immediately	$ 79.97
NI	316136900		Cleaner, Stainless Steel				$ 35.49
NIA	241601001		Wrench, Allen		Appelez-nous	-
