SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

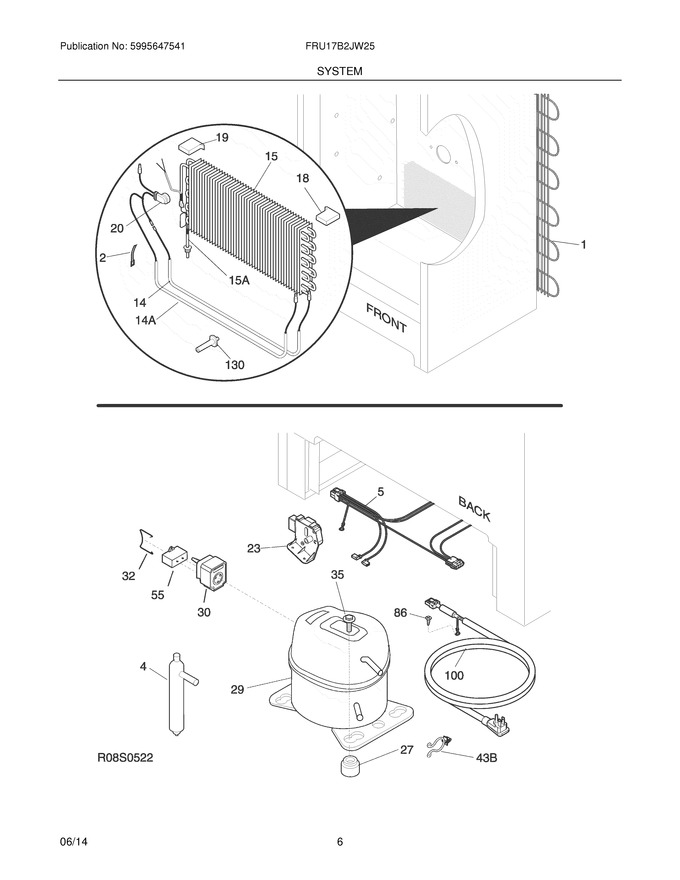

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396860)			Immediately	$ 31.67
5	297244600		Harness-main				$ 130.44
14	297253602		Defrost Heater   (Replaces: 297216102)				$ 85.69
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 171.34
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	216731001		Thermostat,defrost			Immediately	$ 84.46
23	5304518034		Timer,defrost ,115v ,tab   (Replaces: 297318010)			Immediately	$ 57.55
27	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
29	5304507767		Compressor   (Replaces: 297406910)				$ 726.41
30	297259521		Controller,compressor   (Replaces: 297259511)				$ 68.26
32	216954300		Clip,controller				$ 17.01
35	297368500		Bolt,compressor		Appelez-nous	-
55	297286805		Capacitor-run				$ 45.55
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
100	297366805		Cord,power   (Replaces: 297366804)				$ 68.68
130	297244700		Support,evaporator Mtg				$ 4.26
14A	297222901		Heater				$ 73.40
15A	297217900		Heat Exchanger   (Replaces: 297440900)			Immediately	$ 91.82
43B	297315800		Clip,wire				$ 10.13
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	216683900		Thermostat,service Part				$ 61.62
NI	216502500		Sleeve,suction Line				$ 10.85
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	216695300		Relay				$ 77.97

    View Diagram in Separate Window       Print Part List
