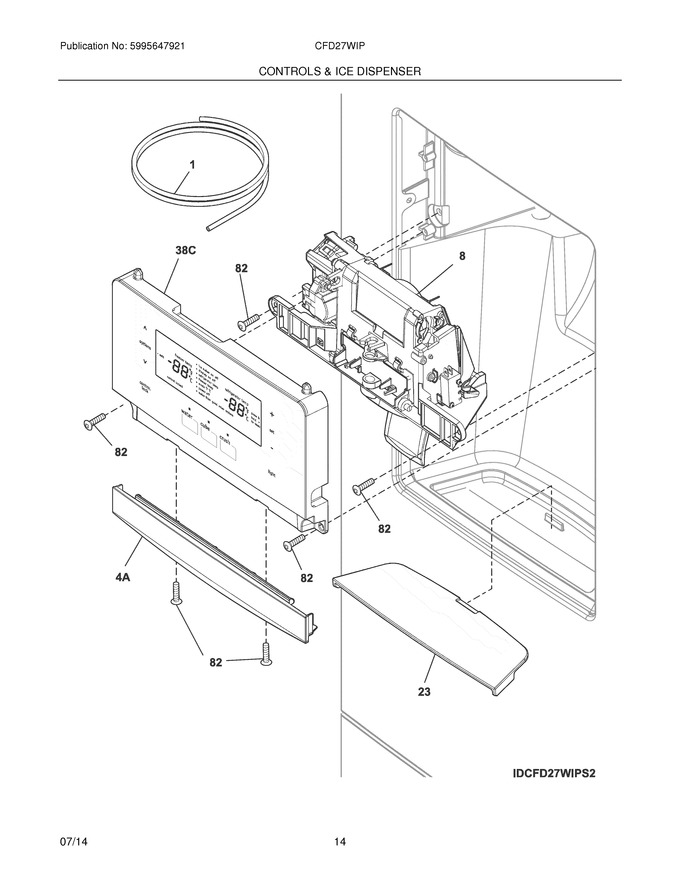

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water,5/16 - 42`` ,yellow ,sd (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| 8 | 242270106 | Module,dispenser ,clear ,w/paddle (Replaces: 242270102) |
|
Immediately | $ 214.62 | ||||
| 23 | 242176501 | Sump,dispenser ,white |
|
$ 24.41 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 38C | 5304527929 | User Interface,assembly ,black ,complete,w/gasket (Replaces: 242058229) |
|
$ 304.87 | |||||
| 38C | 241953902 | Screw,no.8-18 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| 4A | 242176401 | Trim,facade ,white |
|
$ 46.78 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 241503901 | Connector-water,straight ,5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 242169404 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension |
|
- | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 24.10 | ||||
| NI | 241964707 | Tube-water,1/4 - 36`` ,green |
|
Immediately | $ 18.43 | ||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NI | 5304521784 | Harness-wiring,door (Replaces: 242040804) |
|
$ 61.43 | |||||
| NI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 |
