SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

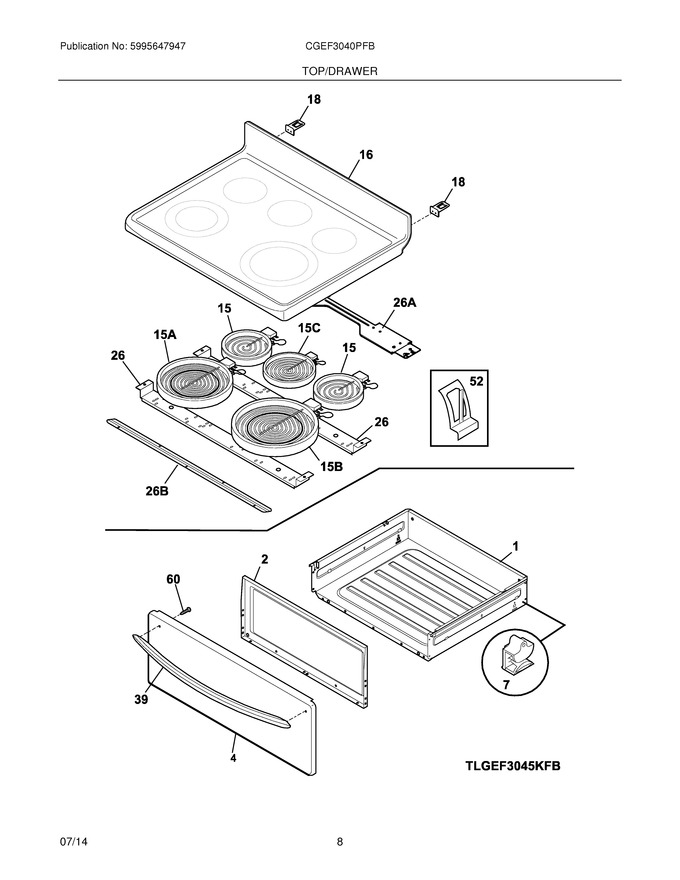

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	5304512039		Panel,drawer Front ,stainless   (Replaces: 316409421)				$ 135.50
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
16	316531953		Maintop,steel/glass ,black			Immediately	$ 563.72
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
26	5304500986		Channel,element Support ,(2)   (Replaces: 316427603)				$ 41.68
39	316554010		Handle,door/drawer ,black   (Replaces: 316554008)			Immediately	$ 168.44
52	316461700		Clip,element Mtg				$ 12.05
60	316433303		Screw,handle Mtg. ,10-24 X 1.75`` ,(2)   (Replaces: 316439500)			Immediately	$ 31.17
15A	5304533520		Element,dual ,9``/6`` ,surface ,3000w ,quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	316282100		Element,dual ,9/12`` ,surface ,1700/2700w,dual Radiant			Immediately	$ 249.27
15C	140273621015		Element,surface ,warmer ,100 W   (Replaces: 316289800)			Immediately	$ 35.77
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214202		Bracket,chassis Support ,front				$ 25.41
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw,10-16 X .486				$ 13.46
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	5308014215		Screw,6-20 X 0.312				$ 2.28
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316580474		Harness,wiring ,surface Units				$ 168.36
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
