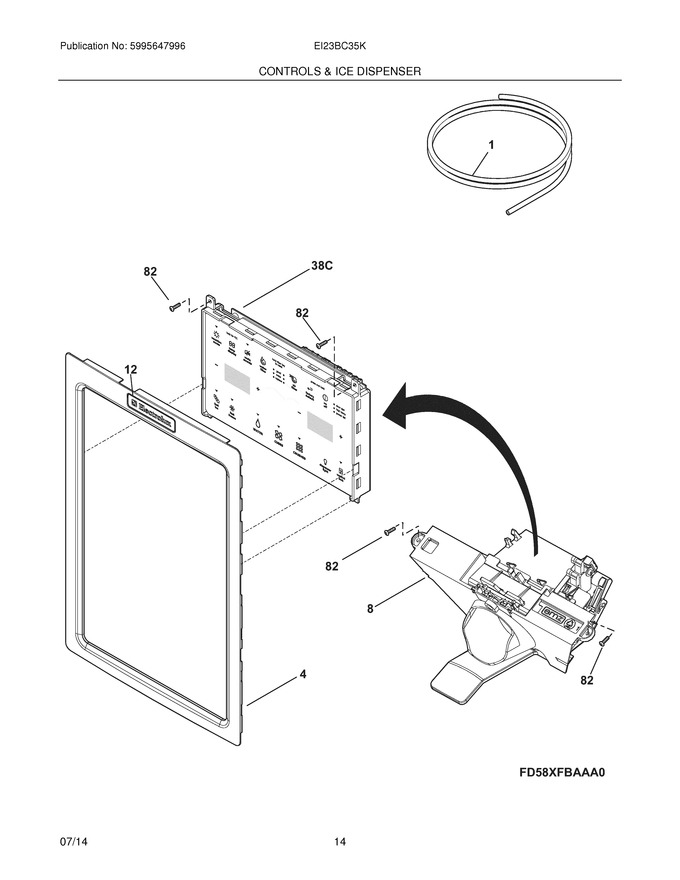

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet,5/16 - 59`` ,yellow ,cd |
|
$ 20.56 | |||||
| 4 | 241893104 | Cover-module,stainless (Replaces: 241757504) |
|
$ 71.48 | |||||
| 8 | 242100005 | Module-dispenser,silver |
|
$ 204.99 | |||||
| 12 | 241873301 | Nameplate,electrolux ,stainless |
|
$ 11.15 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 38C | 242102802 | Board-control,assembly |
|
$ 266.27 | |||||
| NI | 242220113 | Tube-water,.315 - 51`` ,natural |
|
$ 18.44 | |||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| NI | 242040801 | Harness-wiring,dispenser |
|
$ 79.95 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 241503901 | Connector-water,straight ,5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 242220112 | Tube-water,.315 - 51`` ,brown/tan |
|
$ 19.85 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 242169404 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension |
|
- | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 24.10 | ||||
| NI | 241964707 | Tube-water,1/4 - 36`` ,green |
|
Immediately | $ 18.43 |
