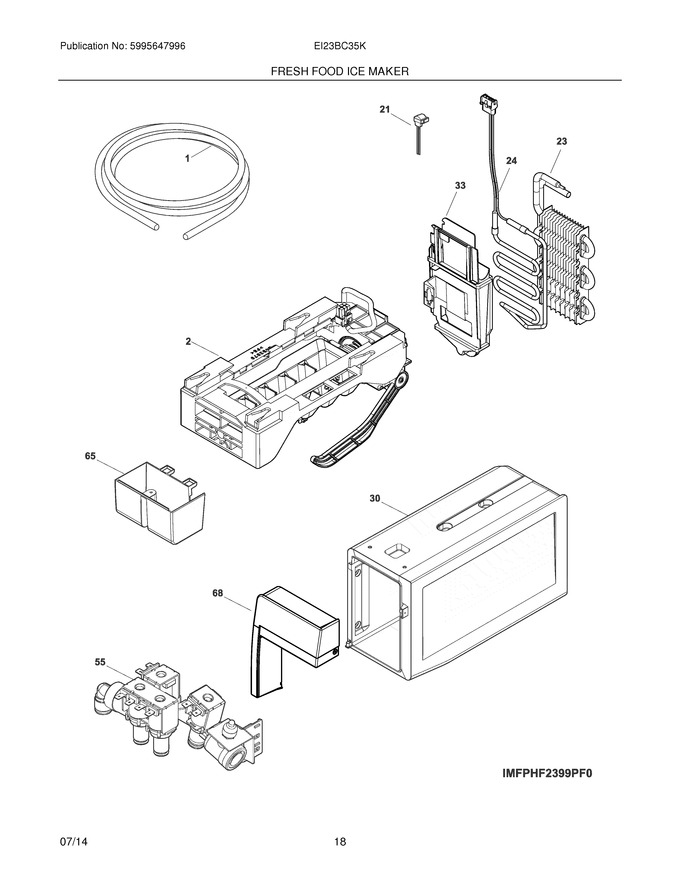

17 - Fresh Food Ice Maker


19 - Freezer Ice Maker


20 - Wiring Diagram


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976435		Tube-water Inlet,5/16 - 59`` ,yellow ,cd				$ 20.56
2	243297613		Ice Maker,complete ,115 V   (Replaces: 243297603)			Immediately	$ 117.66
21	5303918568		Thermostat-defrost,defrost ,icemaker Evap				$ 91.43
23	242094603		Evaporator,ice Maker				$ 138.07
24	242094802		Heater-defrost			Immediately	$ 113.92
30	242093501		Cover,icmkr & Bucket   (Replaces: 242142202)				$ 168.69
33	242094401		Housing-evaporator				$ 6.39
55	242253002		Valve-water,quad Solenoid			Immediately	$ 244.75
65	242145902		Cover-wiring		Appelez-nous	-
68	242095002		Cover,-front ,bucket Trim				$ 94.82
NI	5303918784		Gasket,.4x .75x 16.00``   (Replaces: 242124801)			Immediately	$ 122.75
NI	5303918784		Gasket,.9x .75x 10.75``   (Replaces: 242124802)			Immediately	$ 122.75
NI	5303918784		Gasket,housing Funnel ,2.69x 3.05x .25 ,top,w/hole   (Replaces: 242146001)			Immediately	$ 122.75
NI	242095402		Gasket-evap Housing,.250x.250x3.300		Appelez-nous	-
NI	242095403		Gasket-evap Housing,.250x.250x7.750		Appelez-nous	-
NI	242095405		Gasket-evap Housing,.250x.250x6.600		Appelez-nous	-
NI	242095408		Gasket-evap Housing,.250x1.00x6.600		Appelez-nous	-
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	240363602		Screw-shoulder				$ 13.65
NI	242096001		Insulation,i/container Frt				$ 19.72
NI	241503901		Connector-water,straight ,5/16 To 1/4				$ 51.22
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	240396802		Clamp,tube/wiring ,nylon ,black/natural		Appelez-nous	-
NI	241641502		Screw				$ 8.51
NI	5303918571		Tube-water,ice Mold Fill ,black ,extension   (Replaces: 241844403)				$ 164.24
NI	241920106		Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension   (Replaces: 241920104)			Immediately	$ 60.67
NI	241964707		Tube-water,1/4 - 36`` ,green			Immediately	$ 18.43
NI	241965906		Tube-water,5/16 - 67`` ,natural			Immediately	$ 24.10
NI	242220112		Tube-water,.315 - 51`` ,brown/tan				$ 19.85
NI	242220113		Tube-water,.315 - 51`` ,natural				$ 18.44
NI	241695906		Screw,10-16ab X 0.50				$ 19.13
NI	242095406		Gasket			Immediately	$ 18.17
NI	5303918784		Gasket   (Replaces: 242095407)			Immediately	$ 122.75
