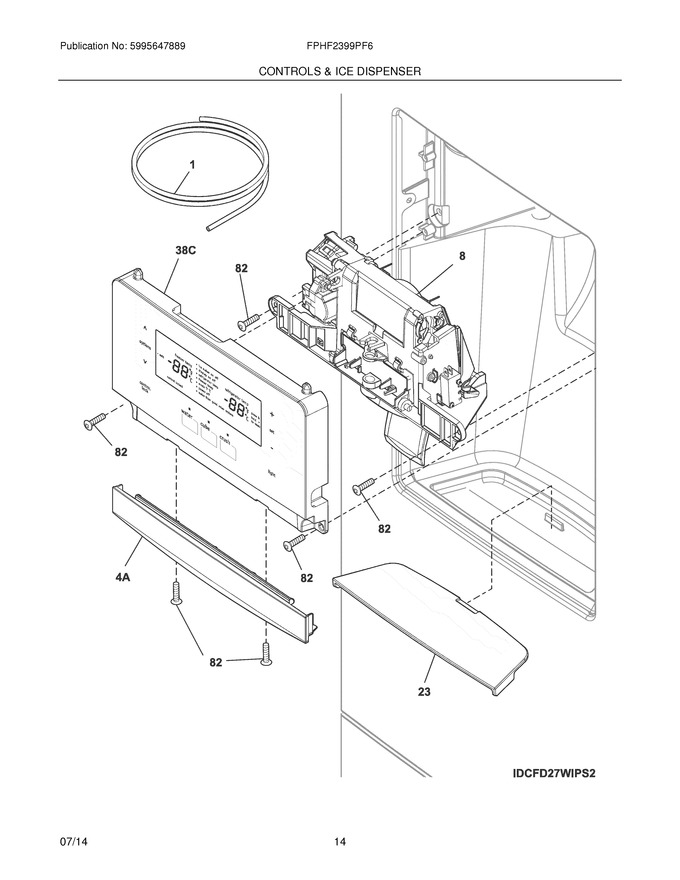

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet,5/16 - 59`` ,yellow ,cd |
|
$ 20.56 | |||||
| 8 | 242270106 | Module,dispenser ,clear ,w/paddle (Replaces: 242270102) |
|
Immediately | $ 214.62 | ||||
| 23 | 242176503 | Sump,dispenser ,grey |
|
$ 114.11 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 38C | 242058231 | User Interface,assembly ,complete ,w/gasket |
|
$ 401.18 | |||||
| 4A | 242194301 | Trim,facade ,stainless |
|
$ 103.29 | |||||
| NI | 5304521784 | Harness-wiring,door (Replaces: 242040804) |
|
$ 61.43 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 24.10 | ||||
| NI | 242169404 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension |
|
- | |||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| NI | 241503901 | Connector-water,straight ,5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 241964707 | Tube-water,1/4 - 36`` ,green |
|
Immediately | $ 18.43 |
