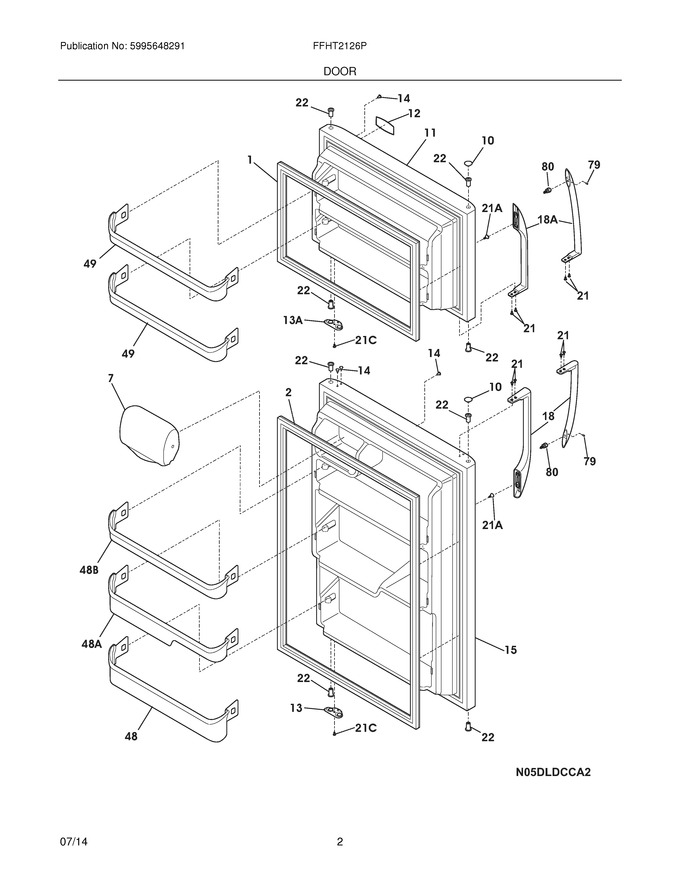

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door,black ,magnetic				$ 187.11
2	242193214		Gasket-frzr Door,black ,magnetic				$ 190.85
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 36.41
10	240381307		Plug-button,silver Mist ,hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 16.69
11	242178015		Door-frzr,stainless ,complete Assy				$ 507.56
12	242016301		Nameplate,frigidaire				$ 4.26
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
14	240494006		Plug-button,silver Mist				$ 19.69
15	242178112		Door-refr,stainless ,complete				$ 597.57
18	242075501		Handle-door,stainless ,refr-rh/frzr-lh   (Replaces: 242075202)				$ 233.58
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw,shoulder ,no.10-ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
18A	242075501		Handle-door,stainless ,refr-lh/frzr-rh   (Replaces: 242075201)				$ 233.58
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	240337901		Bin-door			Immediately	$ 52.13
48B	240338001		Bin-door			Immediately	$ 34.96
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
