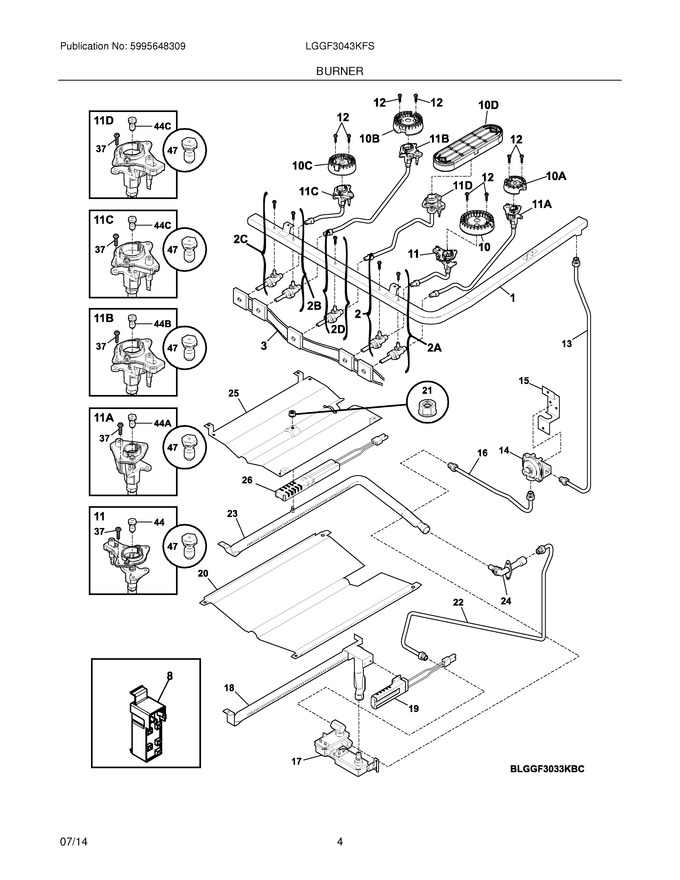

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316417901		Manifold				$ 133.47
2	316560900		Valve,burner ,16/17/18k				$ 88.72
3	316580615		Harness-ignitor			Immediately	$ 109.27
8	5304508269		Module,spark   (Replaces: 316262404)			Immediately	$ 105.46
10	316438400		Burner,sealed ,17k			Immediately	$ 83.42
11	316536622		Ignitor/orifice Assy .,,top Burner ,right Front,17k ,w/tube & Holder				$ 178.08
12	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
13	316489101		Tube-manifold Supply			Immediately	$ 102.06
14	316091711		Regulator,pressure			Immediately	$ 90.03
15	316091600		Bracket,regulator				$ 73.56
16	5304507348		Tube-valve To Rgltr,3/8   (Replaces: 316431000)			Immediately	$ 47.03
17	316031501		Valve,safety			Immediately	$ 296.26
18	316404400		Burner,oven				$ 109.10
19	5304506545		Ignitor,broil Burner   (Replaces: 316489404)			Immediately	$ 94.21
20	5304519024		Baffle,oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 50.06
23	316404302		Burner,broiler				$ 104.18
24	5304516894		Elbow,mixer   (Replaces: 316409700)				$ 87.21
25	316401301		Baffle,broil Burner				$ 173.57
26	316489403		Ignitor,bake Burner			Immediately	$ 113.15
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
44	316527509		Orifice,burner ,17k				$ 19.85
47	GRLP4		Lp Conversion Kit,w/instructions			Immediately	$ 56.70
10A	316438200		Burner,sealed ,5k			Immediately	$ 56.70
10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
10C	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
10D	316559300		Burner,sealed ,oval				$ 177.19
11A	316536610		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube			Immediately	$ 92.38
11B	316536616		Ignitor/orifice Assy.,top Burner ,left Rear,14k ,w/holder, Tube			Immediately	$ 156.21
11C	316536602		Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube				$ 132.62
11D	316536623		Ignitor/orifice Assy.,top Burner ,center,9.5k ,w/holder & Tube				$ 147.71
2A	5303935308		Valve,5k Top Burner ,w/mtg Screw				$ 70.88
2B	5303935306		Valve,12/14k Burner ,w/mtg Screw				$ 80.80
2C	5303935305		Valve,9.5k Burner ,w/mtg Screw			Immediately	$ 77.26
2D	5303935309		Valve-top Burner,tortilla				$ 82.22
44A	316527504		Orifice,burner ,5k				$ 22.68
44B	316257511		Orifice,top Burner ,14k		Appelez-nous	-
44B	316527511		Orifice,burner ,14k				$ 19.85
44C	316527500		Orifice,burner ,9.5k				$ 21.40
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316257400		Bracket,spark Module				$ 15.17
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316021104		Screw,hex ,8-18 X 3/8 ,nick ,(3) ,regulator Brkt				$ 7.79
NI	316498100		Shield,wire ,safety Valve				$ 15.17
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	316401500		Cover,broil Ignitor				$ 12.89
NI	5304494425		Harness,ignitor   (Replaces: 316580602)				$ 86.45
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
