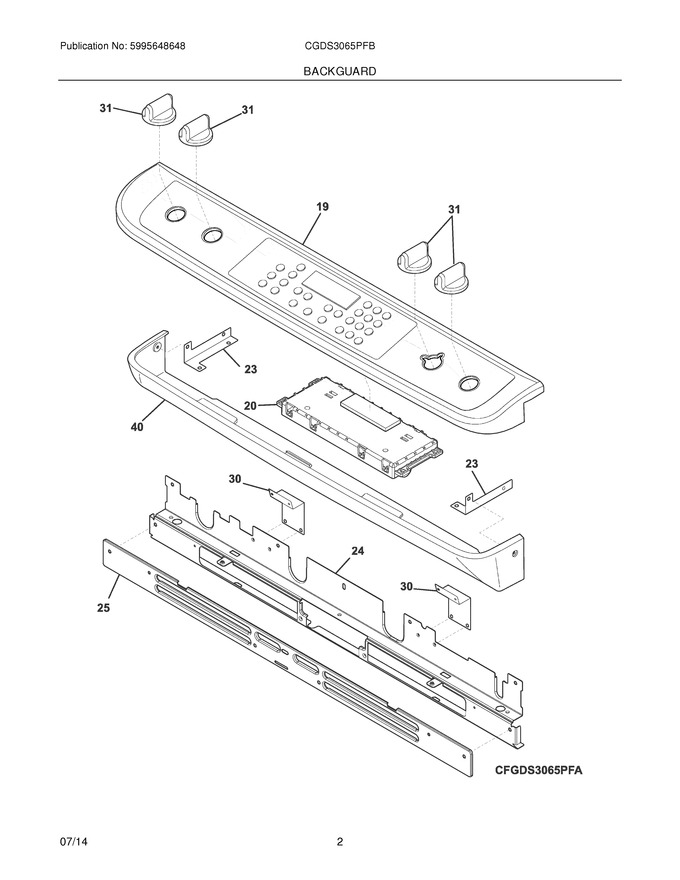

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	139059421		Panel Assembly,control ,black/stainless   (Replaces: 139059411)				$ 630.05
20	5304503760		Controller,electronic ,es530w6 Df   (Replaces: 316560178)				$ 363.29
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	139074901		Frame,vent Trim ,black		Appelez-nous	-
25	139075001		Cover,vent Trim ,black				$ 60.52
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316564411		Knob,control ,stainless				$ 131.03
40	318912905		Panel,service ,black				$ 301.40
NI	807633201		Harness,wiring ,display				$ 153.09
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
