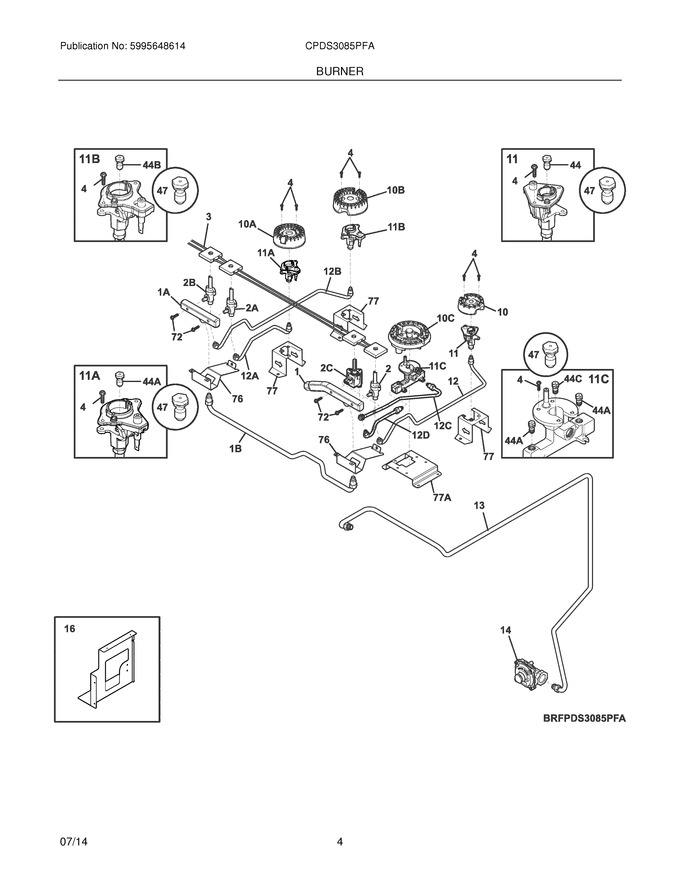

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318913400		Manifold,right Side				$ 133.88
2	318915700		Valve,top Burner ,5k				$ 69.04
3	318232659		Wiring Harness,w/igntr Switch				$ 100.59
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
12	318916800		Tube,burner Supply ,rh Rear				$ 110.09
13	318913600		Tube,rgltr To Manf				$ 140.23
14	318122721		Regulator,pressure			Immediately	$ 126.65
16	318590003		Panel,regulator Mtg.				$ 51.50
44	316527504		Orifice,burner ,5k				$ 22.68
47	GRLP4		Conversion Kit,lp   (Replaces: 318565406)			Immediately	$ 56.70
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
76	318906703		Bracket,manifold ,(2)				$ 46.57
77	318920300		Bracket,burner Mtg ,(4)		Appelez-nous	-
10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
10C	318567000		Burner Assembly,twin				$ 135.45
11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
11B	316543206		Ignitor/orifice Assy.,top Burner ,14k ,w/holder				$ 146.71
11C	316440100		Ignitor/orifice Assy.,top Burner ,twin ,17k,w/holder				$ 167.98
12A	318916500		Tube,burner Supply ,lh Front				$ 47.78
12B	318916600		Tube,burner Supply ,lh Rear		Appelez-nous	-
12C	318928100		Tube,twin Burner ,inside				$ 42.32
12D	318928200		Tube,twin Burner ,outside				$ 40.22
1A	318907200		Manifold,pipe ,lh				$ 115.03
1B	318913500		Tube,connection ,manifold				$ 106.52
2A	318915702		Valve,top Burner ,9.5k   (Replaces: 318915701)				$ 72.87
2B	318915703		Valve,top Burner ,14k				$ 76.97
2C	316412515		Valve,top Burner ,18k ,dual Port				$ 385.88
44A	316527500		Orifice,burner ,9.5k				$ 21.40
44B	316527513		Orifice,top Burner ,14k				$ 22.05
44C	316527514		Orifice,top Burner ,simmer				$ 20.56
77A	318384103		Bracket,burner ,dual				$ 13.39
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316566901		Sleeve,insulator				$ 12.89
NI	316021104		Screw,hex ,8-18 X 3/8 ,nick ,(3) ,regulator Brkt				$ 7.79
NI	318199776		Wiring Harness,ignitor				$ 54.60
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
