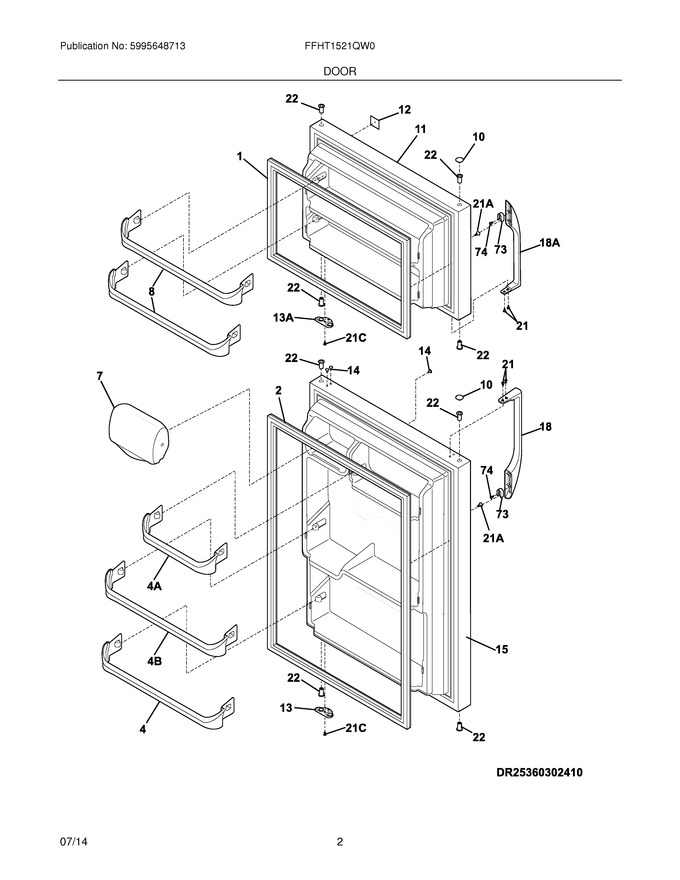

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193201		Gasket,freezer Door ,white ,magnetic			Immediately	$ 194.98
2	242193202		Gasket,refrig Door ,white			Immediately	$ 183.60
4	240535101		Rack-door			Immediately	$ 28.57
7	240337712		Door-dairy			Immediately	$ 36.41
8	240535001		Rack-door			Immediately	$ 48.20
10	240494001		Plug-button,white ,cab Liner Holes			Immediately	$ 18.20
11	807460010		Freezer Door,complete ,white   (Replaces: 807460007)				$ 294.52
12	242016301		Nameplate,frigidaire				$ 4.26
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
14	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 18.95
15	807460108		Refrigerator Door,complete ,white				$ 311.10
18	5304506469		Handle-door,white ,refr-rh/frzr-lh   (Replaces: 242059504)			Immediately	$ 69.75
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 7.59
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
73	218396701		Block-handle Mtg,dovetail		Appelez-nous	-
74	215503203		Screw,cr Pan Hd ,10-16 X 0.500			Immediately	$ 7.09
13A	240312414		Door Stop,white ,frzr				$ 19.13
18A	5304506469		Handle-door,white ,refr-lh/frzr-rh   (Replaces: 242059501)			Immediately	$ 69.75
21A	240521303		Screw,no.10-16 X 1/2			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
4A	240535301		Rack-door,12.03``			Immediately	$ 41.12
4B	240535201		Rack-door			Immediately	$ 30.34
NI	218515401		Clip-grille				$ 17.72
