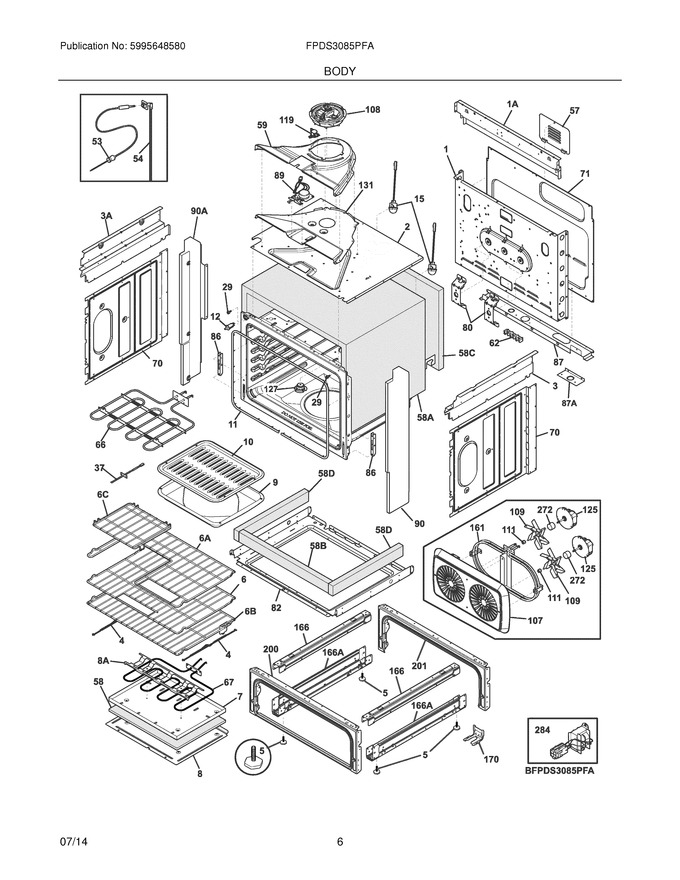

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel,main Back		Appelez-nous	-
2	139078200		Shield,insulation ,top		Appelez-nous	-
3	318225230		Panel,bodyside ,upper Rh		Appelez-nous	-
4	318927600		Support,auto Rack ,(2)				$ 23.25
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	139011600		Rack,oven ,w/handle				$ 124.74
7	318297303		Box,bake Element				$ 125.84
8	318359500		Panel,service				$ 140.09
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal,oven Door ,gray				$ 140.34
12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly,round ,halogen ,w/lens ,w/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Spacer,oven Door				$ 12.05
37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
53	5304504202		Probe,meat Temp ,red   (Replaces: 318601303)			Immediately	$ 106.19
54	139017201		Receptacle Assy,meat Probe				$ 187.82
57	316283600		Cover,access				$ 12.50
58	318294912		Insullation,bake Element				$ 97.17
59	139078002		Duct,cooling Fan ,top   (Replaces: 139078000)				$ 78.67
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521861		Element,broil ,8 Pass ,4000w   (Replaces: 139000900)			Immediately	$ 90.25
67	5304521880		Element,bake ,2500w ,8 Pass   (Replaces: 139026700)			Immediately	$ 114.97
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield,rear Wall ,lower		Appelez-nous	-
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
82	139008201		Shield,insulation ,lower		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260638		Bracket,cable Mtg.		Appelez-nous	-
89	5304528836		Motor,latch Assembly   (Replaces: 139078300)			Immediately	$ 76.34
90	5304511889		Panel,filler ,black ,rh   (Replaces: 318296904)				$ 74.42
107	139001501		Cover,dual Fan ,convection				$ 60.80
107	807597603		Screw,self Tapping ,8-18 X 11/32 ,(4)				$ 9.22
108	318575612		Motor,cooling Fan			Immediately	$ 196.61
109	318398302		Blade,fan ,convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat,safety				$ 58.39
125	139008500		Motor,convection Fan			Immediately	$ 216.23
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139078102		Duct,cooling Fan ,bottom   (Replaces: 139078100)				$ 64.49
161	5304522063		Element,convection ,dual ,2500w   (Replaces: 139006600)				$ 132.71
166	318298410		Bracket,base Support ,(2)				$ 75.83
166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
170	5304486410		Kit,anti Tip ,w/brkt & Instru				$ 158.50
200	318298226		Frame,drawer ,front				$ 107.00
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
272	139021700		Tube,convection Fan				$ 17.72
284	316536100		Transformer			Immediately	$ 210.83
1A	139004600		Panel,main Back ,upper				$ 67.62
3A	318225231		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	139010900		Insulation,wrapper ,top & Sides				$ 97.70
58B	139020300		Insulation,front		Appelez-nous	-
58C	139020201		Insulation,oven Back		Appelez-nous	-
58D	139020301		Insulation,sides ,(2)		Appelez-nous	-
6A	139012800		Rack,oven ,half ,w/handle				$ 192.94
6B	139013101		Rack,auto   (Replaces: 139013100)				$ 159.26
6C	139013000		Rack Insert,half Rack				$ 91.30
87A	318111806		Plate,cord Set Mtg				$ 11.68
8A	318313601		Bracket,bake Element				$ 71.45
90A	5304511890		Panel,filler ,black ,lh   (Replaces: 318296905)				$ 81.14
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	318946500		Bulb,halogen ,g9 ,25w ,120v			Immediately	$ 60.44
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
NI	318264200		Plate,grounding Strap				$ 23.51
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	318579001		Bracket,wire				$ 11.08
NI	5304497427		Harness,wiring ,main		Appelez-nous	-
NI	316303501		Harness Assembly,filter ,electrical ,w/capacitors				$ 84.91
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
