View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner

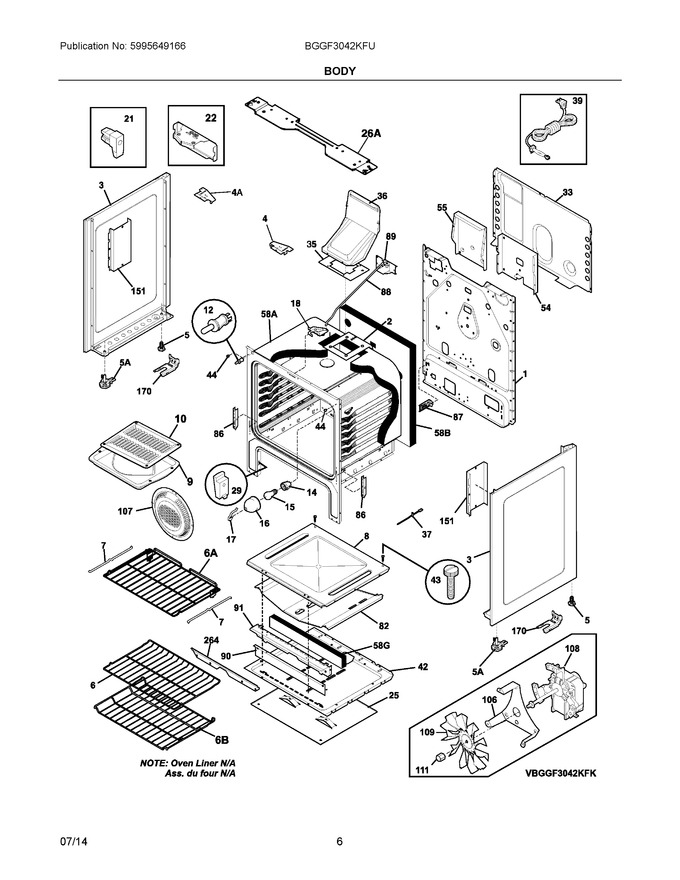

04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316401600 | Back, Main |
|
- | |||||
| 2 | 316437100 | Brace, Oven Top |
|
$ 31.90 | |||||
| 3 | 316400144 | Panel, Bodyside, Black, Rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 4 | 316285000 | Bracket-maintop |
|
- | |||||
| 5 | 316272900 | Screw, Leveling, Plastic, Rear, (2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316496201 | Rack, Oven |
|
Immediately | $ 103.48 | ||||
| 7 | 316546300 | Link, Coupler, (2), Auto Rack |
|
Immediately | $ 22.75 | ||||
| 8 | 316400603 | Panel, Oven Bottom |
|
Immediately | $ 186.56 | ||||
| 9 | 316081900 | Pan, Broiler Optional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert, Broiler Pan Optional Access0ry |
|
$ 68.85 | |||||
| 12 | 316445500 | Switch, Oven Light, Door Frame |
|
Immediately | $ 54.74 | ||||
| 14 | 316116400 | Receptacle, Oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp, Oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304524341 | Lens, Oven Light, Glass (Replaces: 318406100) |
|
Immediately | $ 14.18 | ||||
| 17 | 316087500 | Retainer, Lens |
|
$ 56.70 | |||||
| 18 | 316405800 | Latch Assembly, Oven Door |
|
Immediately | $ 56.74 | ||||
| 21 | 316408000 | Clip, Bodyside |
|
$ 18.20 | |||||
| 22 | 316286300 | Bracket-bodyside, (2) |
|
$ 17.72 | |||||
| 25 | 316406200 | Shield, Heat, Lower |
|
$ 87.97 | |||||
| 29 | 807047102 | Glide, Drawer, Front (Replaces: 316407301) |
|
Immediately | $ 23.82 | ||||
| 33 | 316402500 | Shield, Rear Wall |
|
$ 120.49 | |||||
| 35 | 316542102 | Gasket-flue (Replaces: 316542100) |
|
$ 12.13 | |||||
| 36 | 316208901 | Flue |
|
$ 129.68 | |||||
| 37 | 316490000 | Probe, Oven Temp |
|
Immediately | $ 58.30 | ||||
| 39 | 5304534377 | Cord, Electric Power (Replaces: 807108202) |
|
$ 26.85 | |||||
| 42 | 316400700 | Shield, Wool, Lower |
|
$ 146.36 | |||||
| 43 | 316282700 | Screw, 8-18 X 1.438, Oven Bottom (Replaces: 3131732) |
|
$ 9.93 | |||||
| 44 | 316517600 | Spacer, Oven Door |
|
$ 12.05 | |||||
| 54 | 316404200 | Shield, Heat |
|
$ 57.75 | |||||
| 55 | 5304510473 | Shield, Flue (Replaces: 316404800) |
|
$ 23.39 | |||||
| 82 | 316400801 | Shield, Bake Burner |
|
$ 164.57 | |||||
| 86 | 316441300 | Receptacle, Hinge |
|
$ 21.97 | |||||
| 87 | 316401201 | Bracket, Harness |
|
- | |||||
| 88 | 316232702 | Rod, Auto Latch (Replaces: 316232700) |
|
$ 12.89 | |||||
| 89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| 90 | 316401100 | Shield, Main Front |
|
- | |||||
| 91 | 316401000 | Shield, Front, Burner |
|
- | |||||
| 106 | 316404100 | Bracket, Motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026701 | Cover, Fan |
|
$ 408.89 | |||||
| 108 | 316256900 | Motor-fan |
|
$ 191.27 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 151 | 316404601 | Shield, Bodyside |
|
$ 21.27 | |||||
| 170 | 316112005 | Anti Tip Kit, Assembly |
|
Immediately | $ 18.91 | ||||
| 264 | 316404700 | Bracket, Air Dam |
|
- | |||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 3A | 316400145 | Panel, Bodyside, Black, Lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 4A | 316285001 | Bracket-maintop |
|
- | |||||
| 58A | 316403700 | Insulation, Oven Wrapper |
|
$ 304.06 | |||||
| 58B | 316403600 | Insulation, Oven Back |
|
$ 125.75 | |||||
| 58G | 8067973 | Insulation, Main Front |
|
- | |||||
| 5A | 5304509869 | Leveling Leg Assy, Metal, Front, (2), Bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 316577800 | Rack, Oven, Auto (Replaces: 316556500) |
|
$ 243.43 | |||||
| 6B | 316496205 | Rack, Oven |
|
$ 134.67 | |||||
| NI | 316279600 | Screw, Bracket, Stiffener, (4) |
|
$ 12.05 | |||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316580330 | Harness, Wiring, Main |
|
$ 202.45 | |||||
| NI | 316539800 | Retainer, Wire |
|
$ 14.41 | |||||
| NI | 316231800 | Cover, Hole, Conv. Element |
|
- | |||||
| NIA | 316432800 | Clip, Wire |
|
- | |||||
| NIA | 316112005 | Bracket, Anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| NIB | 316116000 | Screw, Concrete, 1.75", Anti-tip Brkt |
|
$ 12.89 | |||||
| NIC | 316541700 | Template, Anti-tip |
|
- |
