SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

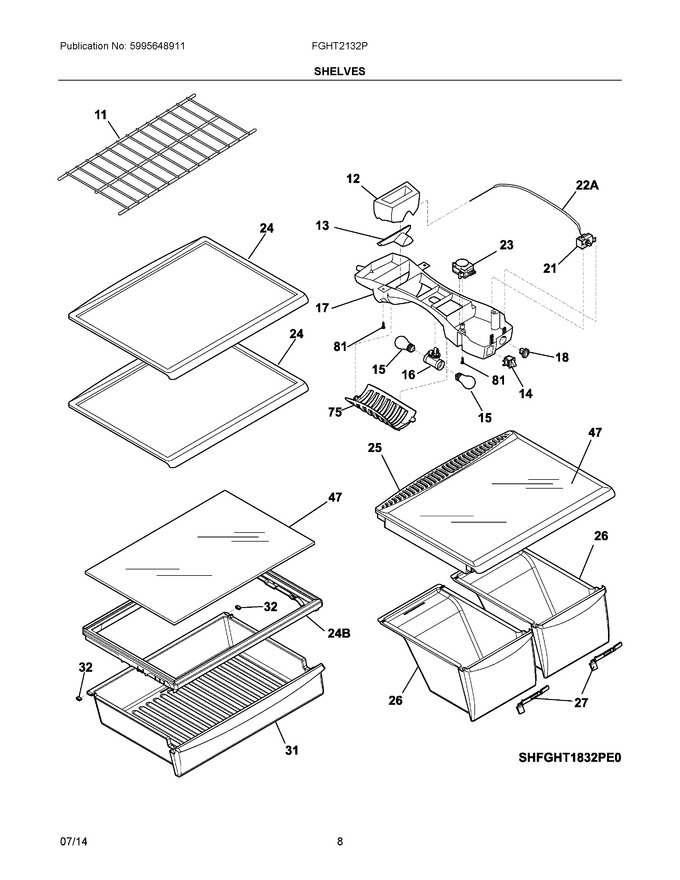

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358006		Shelf, Freezer, Full-width, Wire				$ 45.41
12	240545901		Diffuser-air, Top				$ 70.16
13	240362601		Diffuser, Air, Bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	240364201		Socket-light/lamp, Dual				$ 100.50
17	240368105		Box-control, Front			Immediately	$ 130.44
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 72.31
23	215846604		Timer-defrost   (Replaces: 241809402)			Immediately	$ 24.58
24	240358928		Shelf-"spill-safe", Sliding   (Replaces: 240358927)			Immediately	$ 174.36
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl   (Replaces: 242218504)				$ 119.78
27	242215901		Slide, Humidity Contrl				$ 18.95
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 258.92
32	240349801		Clip-slide, Pan				$ 20.48
47	240350609		Insert-pan Cover, Glass			Immediately	$ 162.30
75	240412701		Shield, Light   (Replaces: 240412702)				$ 16.30
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 9.10
24B	242205404		Cover, Deli Pan, Full Width   (Replaces: 242205402)				$ 116.03
NI	807407003		Label, Energy Guide		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.09
NIA	240362101		Clip-slide, Cover				$ 47.03
NIA	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 17.01
NIA	240388701		Wiring Harness, Control Box			Immediately	$ 80.09
NIB	5303299664		Spacer, Shelf				$ 24.10
NIB	5304535377		Tape, Aluminum, 3" Wide   (Replaces: 240570304)				$ 31.36
NIB	241872203		Support-beam				$ 53.85

    View Diagram in Separate Window       Print Part List
