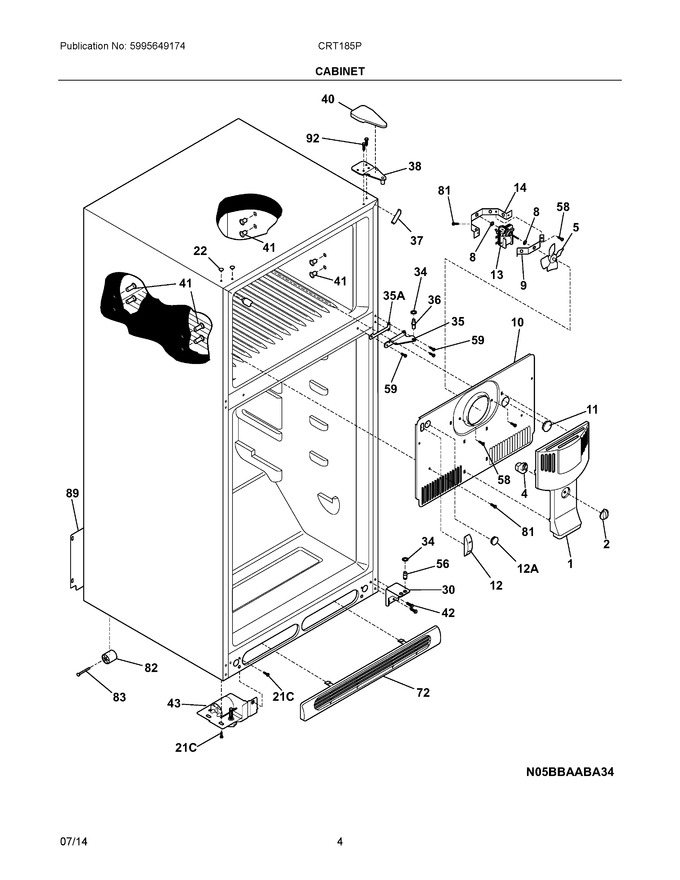

03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652306		Cover-fan		Appelez-nous	-
2	240367001		Knob-damper Control			Immediately	$ 57.64
4	241523701		Damper-fan Cover				$ 19.16
5	5308000010		Fan Blade, Red, Evaporator Fan			Immediately	$ 49.03
8	240438003		Bushing-motor Mtg, (2)   (Replaces: 242014101)				$ 17.44
9	5303292396		Bracket-motor Mtg, Front				$ 72.30
10	241652217		Cover-evap Coil				$ 51.45
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	242193602		Plug-hole, Icemaker				$ 14.41
13	241854301		Motor-fan, W/frzr Harness			Immediately	$ 190.51
14	240438003		Bracket-motor Mtg, Rear   (Replaces: 5303292397)				$ 17.44
22	215774918		Plug-button, Black, Upr Hinge Holes				$ 9.86
30	240314011		Bracket-lower Hinge, Black   (Replaces: 240314003)			Immediately	$ 77.26
34	240311303		Washer, Hinge, Nylon, (2)			Immediately	$ 10.62
35	240313803		Bracket-ctr Hinge, Black				$ 160.88
36	240516402		Pin-center Hinge		Appelez-nous	-
37	242161202		Trim-cabinet Corner, Black, (2)			Immediately	$ 8.66
38	240313703		Bracket-upper Hinge			Immediately	$ 32.27
40	240354404		Cover-upper Hinge, Black				$ 61.56
41	5304500407		Grommet, Shelf Mtg, 1.25", Lh, (4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	241889002		Roller Assy, Front Lh, (2)				$ 63.08
56	240516502		Pin-lower Hinge				$ 72.80
58	240555002		Screw, Hex Washer Head, 8-32 X 0.375   (Replaces: 218897004)			Immediately	$ 13.46
59	240442707		Screw-#10-32 X 3/4, Black			Immediately	$ 2.84
72	241839407		Grille/kickplate, Black			Immediately	$ 58.82
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	241733911		Cover-access, With Label   (Replaces: 241733907)				$ 50.51
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
12A	240374401		Plug-wtr Inlet Tube, Round, 1				$ 12.15
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
35A	240336803		Spacer-hinge, Center, Black				$ 11.34
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
NIA	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NIA	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
NIA	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 66.63
NIA	241889001		Roller Assy, Front Rh, (2)				$ 64.46
NIA	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
NIA	241586701		Plug, Round, Foam, Ice Maker, Water Inlet				$ 17.72
NIA	218843801		Screw, Hex Wshr Hd, 8-15a X 0.500				$ 14.41
NIB	218515401		Clip-grille				$ 17.72
