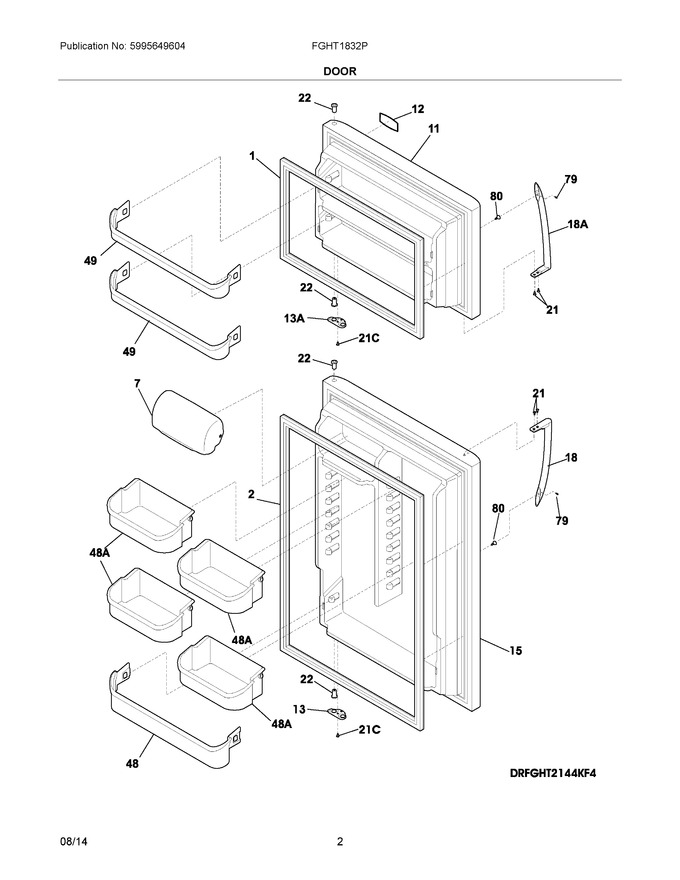

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193203		Gasket-frzr Door, White, Magnetic			Immediately	$ 197.62
2	242193206		Gasket-refr Door, White, Magnetic			Immediately	$ 197.62
7	240338313		Door, Dairy, Clear			Immediately	$ 80.80
10	240381307		Plug-button, Silver Mist, Hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 16.69
11	240410208		Door-frzr, Stainless, Complete Assy				$ 534.38
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 15.17
14	240494006		Plug-button, Silver Mist				$ 19.69
14	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
15	241623446		Door-refr, Stainless, Complete Assy				$ 236.12
18	241977901		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 241977501)				$ 336.65
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495805		Bin-door, Pseudo, Frzr				$ 50.94
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	241977901		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 241977502)				$ 336.65
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door			Immediately	$ 79.97
NI	241601001		Wrench, Allen		Appelez-nous	-
