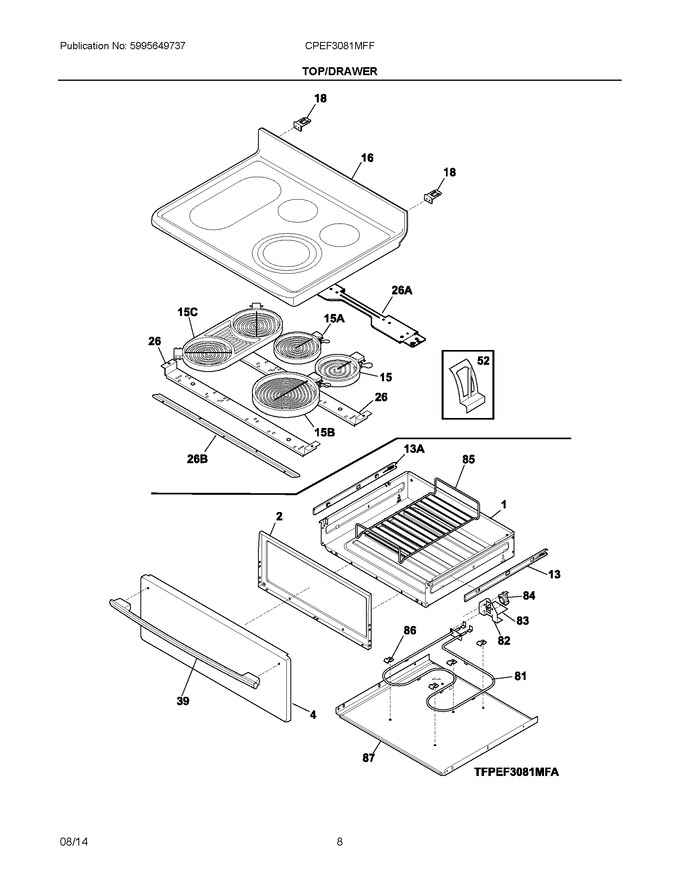

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408905 | Drawer, Warmer (Replaces: 316408901) |
|
$ 143.45 | |||||
| 2 | 316403303 | Liner, Drawer |
|
$ 67.79 | |||||
| 4 | 5304512039 | Panel, Drawer Front, Stainless (Replaces: 316409421) |
|
$ 135.50 | |||||
| 13 | 316415000 | Glide, Warmer, Inner Rh (Replaces: 316415002) |
|
$ 58.82 | |||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 316282957 | Maintop Assembly, Glass/steel, Black |
|
$ 506.06 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 5304500986 | Channel, Element Support, (2) (Replaces: 316427603) |
|
$ 41.68 | |||||
| 39 | 5304532118 | Handle, Door/drawer, Stainless (Replaces: 316551500) |
|
$ 112.88 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 81 | 316437300 | Element, Warmer Drawer |
|
$ 106.17 | |||||
| 82 | 316093200 | Bracket, Element Mtg |
|
- | |||||
| 83 | 316093300 | Shield, Terminal, Warmer Drawer |
|
- | |||||
| 84 | 316093502 | Thermo Disc, Warmer Drawer |
|
$ 51.03 | |||||
| 85 | 807328301 | Rack, Warmer Drawer |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip, Hold Down, (3) |
|
$ 9.93 | |||||
| 87 | 316091900 | Base, Warmer Drawer |
|
$ 221.55 | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 58.82 | ||||
| 15A | 140273621015 | Element, Surface, Warmer, 100 W (Replaces: 316289800) |
|
Immediately | $ 35.77 | ||||
| 15B | 316560400 | Element, Surface, Triple |
|
$ 467.91 | |||||
| 15C | 316280701 | Element, Double 6", Surface, 4400w, W/bridge |
|
$ 273.34 | |||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26B | 316214202 | Bracket, Chassis Support, Front |
|
$ 25.41 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316468100 | Cleaner, Smoothtop, W/sponge |
|
$ 4.88 | |||||
| NI | 316580452 | Harness, Wiring, Surface Units |
|
$ 214.99 | |||||
| NI | 5304516184 | Harness, Warm Base (Replaces: 316525623) |
|
$ 28.51 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316001013 | Screw, Wafer Head, 10-24 X 1.375, Handle Mtg. |
|
Immediately | $ 2.41 |
