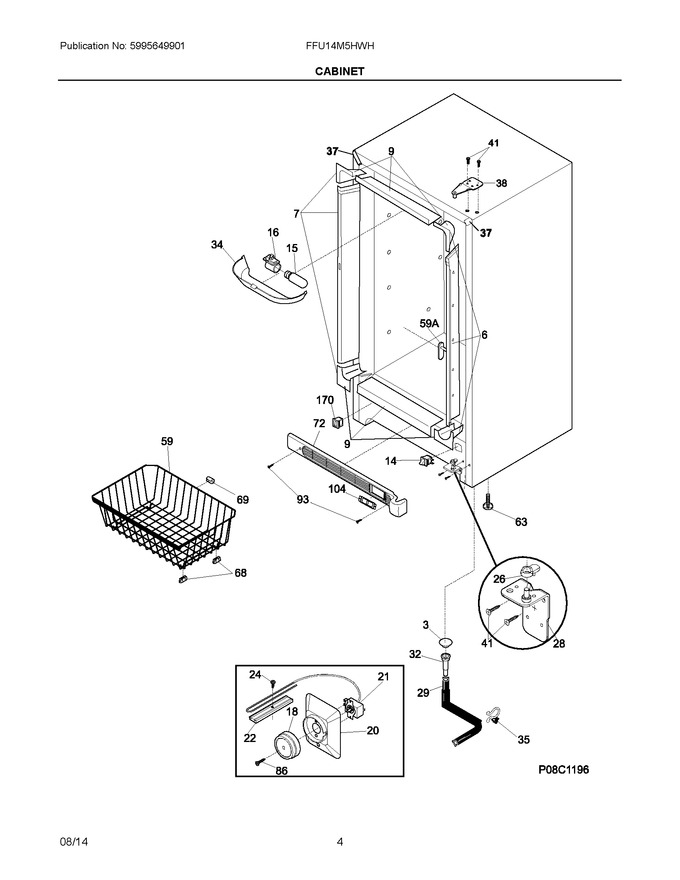

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug, Drain, Interior |
|
Immediately | $ 17.35 | ||||
| 6 | 297200300 | Breaker Kit W/corners, No Lock Slot |
|
$ 39.69 | |||||
| 7 | 297200500 | Breaker Kit W/corners, Incl Lock Catch |
|
$ 74.99 | |||||
| 9 | 297200200 | Breaker Kit W/corners, 28", Top And Bottom |
|
$ 45.32 | |||||
| 14 | 216822900 | Switch, Light/lamp, Ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket, Light/lamp, 25 W |
|
$ 19.52 | |||||
| 18 | 216707200 | Knob, Temp Control |
|
$ 44.10 | |||||
| 20 | 297013800 | Cover-control Housing |
|
$ 80.43 | |||||
| 21 | 5304514707 | Control-temperature (Replaces: 297053911) |
|
Immediately | $ 70.49 | ||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 26 | 216503300 | Ramp, Door Closer |
|
$ 8.82 | |||||
| 28 | 297283900 | Hinge-bottom, Stepped Pin |
|
Immediately | $ 54.23 | ||||
| 29 | 5304510363 | Hose-drain (Replaces: 216313502) |
|
$ 13.74 | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 297184400 | Shield-light |
|
$ 21.16 | |||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 22.42 | |||||
| 37 | 297273904 | Trim-cabinet Corner, White, (2) (Replaces: 297273900) |
|
$ 7.59 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297283800) |
|
Immediately | $ 19.52 | ||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 14.18 | ||||
| 59 | 297343400 | Basket |
|
- | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 68 | 08009560 | Glide-basket |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper-basket |
|
$ 7.23 | |||||
| 72 | 297036802 | Grille/kickplate, 28", White |
|
$ 48.46 | |||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| 104 | 216948401 | Light, Signal, Assy W/bracket |
|
$ 55.24 | |||||
| 170 | 297280400 | Valve, Breather |
|
$ 10.13 | |||||
| 59A | 216486500 | Stop-basket, (2) |
|
$ 20.58 | |||||
| NI | 30534600 | Clip, Wire (Replaces: 5303313703) |
|
$ 3.79 | |||||
| NI | 125963-48 | Insulation, 24", Drain Tube (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 14.41 | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 216794913 | Energy Guide |
|
- | |||||
| NIA | 216926700 | Shield |
|
$ 42.06 | |||||
| NIA | 297164650 | Bracket, Lh Leg Levelor |
|
$ 18.43 | |||||
| NIB | 297164651 | Bracket, Rh Leg Levelor |
|
$ 17.51 |
