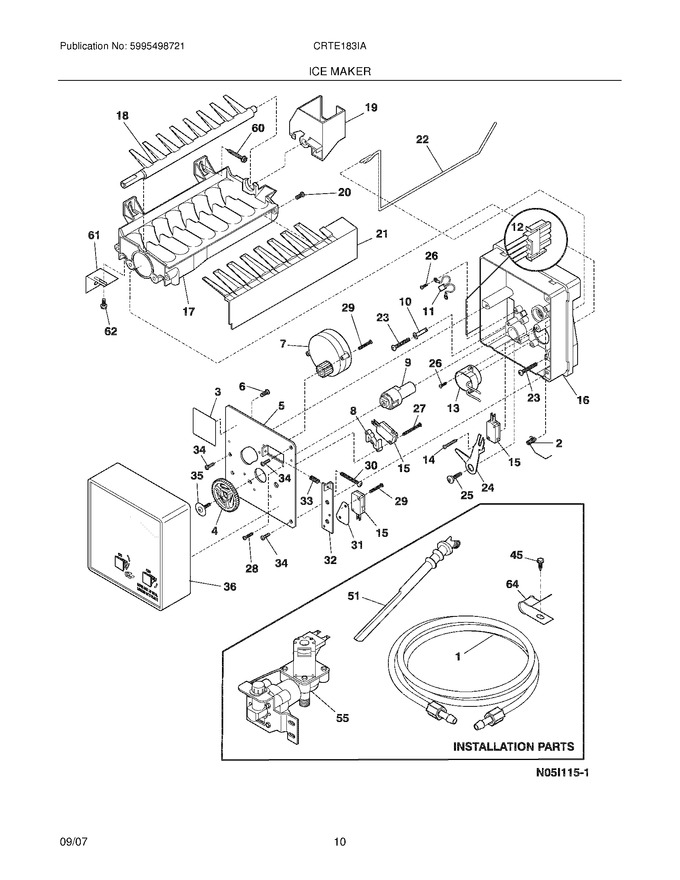

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
2	5304456650		Spring-shutoff Arm,ice Maker		Appelez-nous	-
3	5304456657		Nameplate				$ 3.55
4	5304469403		Gear   (Replaces: 5304456658)				$ 19.99
5	5304456659		Plate-mounting		Appelez-nous	-
6	5304456691		Screw,m 3x20 No.3 ,valve Plate		Appelez-nous	-
7	241798231		Motor-ice Maker Svo   (Replaces: 5304445222)			Immediately	$ 200.97
8	5304456661		Spacer-hold Switch		Appelez-nous	-
9	5304456662		Cam		Appelez-nous	-
10	5304456689		Retainer				$ 77.26
13	5304456665		Thermostat,ice Maker				$ 134.23
14	5304456666		Screw,m 3x20 No.2 ,(6)		Appelez-nous	-
16	5304456668		Support				$ 132.53
17	241798231		Mold-ice Maker,w/therm Cut Off   (Replaces: 5304456669)			Immediately	$ 200.97
18	5304456670		Ejector-ice		Appelez-nous	-
19	5304456671		Bearing & Inlet,fill Cup		Appelez-nous	-
20	5304455677		Screw,8-32 X 3/8		Appelez-nous	-
21	241798231		Ice Stripper   (Replaces: 5304456672)			Immediately	$ 200.97
22	5304456673		Shut-off Arm		Appelez-nous	-
23	5304456674		Screw,m 4x25 No.2 ,mold-to-support ,(2)		Appelez-nous	-
24	5304456675		Lever Arm				$ 66.63
25	5304456676		Screw,m 4x12.8 No.2 ,lever Arm/sprt		Appelez-nous	-
26	5304455680		Screw,plask ,4-14 X 3/8				$ 13.47
27	5304456677		Screw,m 3x25 No.3 ,hold Switch Mtg ,(2)		Appelez-nous	-
28	5304456660		Screw,m 4x6 No.2		Appelez-nous	-
29	5304456678		Screw,m 3x12 No.3 ,(2)		Appelez-nous	-
30	5304456679		Screw-timing Adj,m 4x25 No.3		Appelez-nous	-
31	5304456680		Insulator		Appelez-nous	-
32	5304456681		Plate-valve Switch		Appelez-nous	-
33	5304456682		Spring,timing Adjust		Appelez-nous	-
34	5304456683		Screw,m 4x12 No.2 ,(3)		Appelez-nous	-
35	5304456684		Screw				$ 31.90
36	5304456685		Cover-ice Maker		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
51	241796405		Tube-water,ice Mold Fill ,extension   (Replaces: 241523501)				$ 18.43
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
61	218721500		Bracket-leveling,ice Maker   (Replaces: 5304456686)				$ 73.00
62	5304456687		Screw-im Brkt Mtg,special ,8-32d X 0.375		Appelez-nous	-
64	5304455846		Clamp,.31 Id ,steel ,water Tube				$ 10.63
F11	5304456663		Thermal Cutoff,ice Maker		Appelez-nous	-
F12	5304456875		Harness-wiring,icemaker				$ 134.23
F15	5304456667		Switch-micro,(3)				$ 92.53
F55	242252603		Valve-water,single Solenoid , 60 Hz ,105/120 V   (Replaces: 241803701)			Immediately	$ 73.14
NI	241798231		Ice Maker,radius Cube ,115 V ,svce   (Replaces: 241642501)			Immediately	$ 200.97
NI	5304445223		Spring Beam		Appelez-nous	-
NI	5304456690		Label,on/off		Appelez-nous	-
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	5304456693		Nut,m 3.5				$ 13.46
NI	5304456689		Washer   (Replaces: 5304456737)				$ 77.26
NI	5304456692		Washer		Appelez-nous	-
NI	241642601		Harness-wiring Svo		Appelez-nous	-
NI	5304456688		Terminal		Appelez-nous	-
