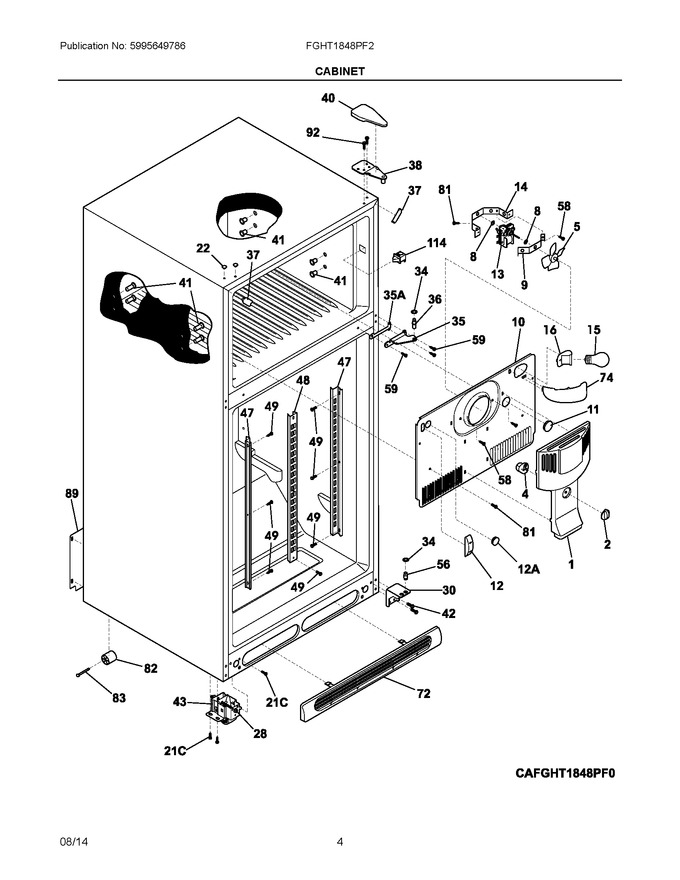

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652306		Cover-fan		Appelez-nous	-
2	240367001		Knob-damper Control			Immediately	$ 57.64
4	241523701		Damper-fan Cover				$ 19.16
5	5308000010		Fan Blade, Red, Evaporator Fan			Immediately	$ 49.03
8	240438003		Bushing-motor Mtg, (2)   (Replaces: 242014101)				$ 17.44
9	5303292396		Bracket-motor Mtg, Front				$ 72.30
10	241652216		Cover-evap Coil				$ 46.08
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	242193602		Plug-hole, Icemaker				$ 14.41
13	241854501		Motor-evap Fan, W/harness				$ 178.70
14	240438003		Bracket-motor Mtg, Rear   (Replaces: 5303292397)				$ 17.44
15	5304511738		Light Bulb   (Replaces: 241560701)			Immediately	$ 24.26
16	218906802		Socket-light/lamp   (Replaces: 218906803)				$ 17.72
22	215774921		Plug-button, Gray, Upr Hinge Holes				$ 7.19
30	240314011		Bracket-lower Hinge, Zinc			Immediately	$ 77.26
34	240311303		Washer, Hinge, Nylon, (2)			Immediately	$ 10.62
35	240313806		Bracket-ctr Hinge, Zinc				$ 57.60
36	240516402		Pin-center Hinge		Appelez-nous	-
37	242161206		Trim-cabinet Corner, Gray, (2)				$ 10.62
38	240313703		Bracket-upper Hinge			Immediately	$ 32.27
41	5304500407		Grommet, Shelf Mtg, 1.25", Lh, (4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy, Front, (2)   (Replaces: 240335006)			Immediately	$ 31.33
47	218233302		Channel-shelf Mtg, Side, (2)				$ 27.51
48	5304486289		Channel-shelf Mtg, Center				$ 17.68
49	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
56	240516502		Pin-lower Hinge				$ 72.80
58	5304456287		Screw, Hex Washer Head, 8-15a X 0.500				$ 0.76
59	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 8.34
72	241839413		Grille/kickplate, Gray				$ 31.71
74	240354303		Shield-light, Frzr				$ 8.51
81	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 51.57
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	241733911		Cover-access, With Label   (Replaces: 241733907)				$ 50.51
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
114	241554901		Switch-light/lamp				$ 70.88
12A	240374401		Plug-wtr Inlet Tube, Round, 1				$ 12.15
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
35A	240336802		Spacer-hinge, Center, White			Immediately	$ 18.43
NI	218990901		Clip-wire				$ 74.42
NIA	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 66.63
NIA	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
NIA	241586701		Plug, Round, Foam, Ice Maker, Water Inlet				$ 17.72
NIA	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
NIB	218515401		Clip-grille				$ 17.72
