SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

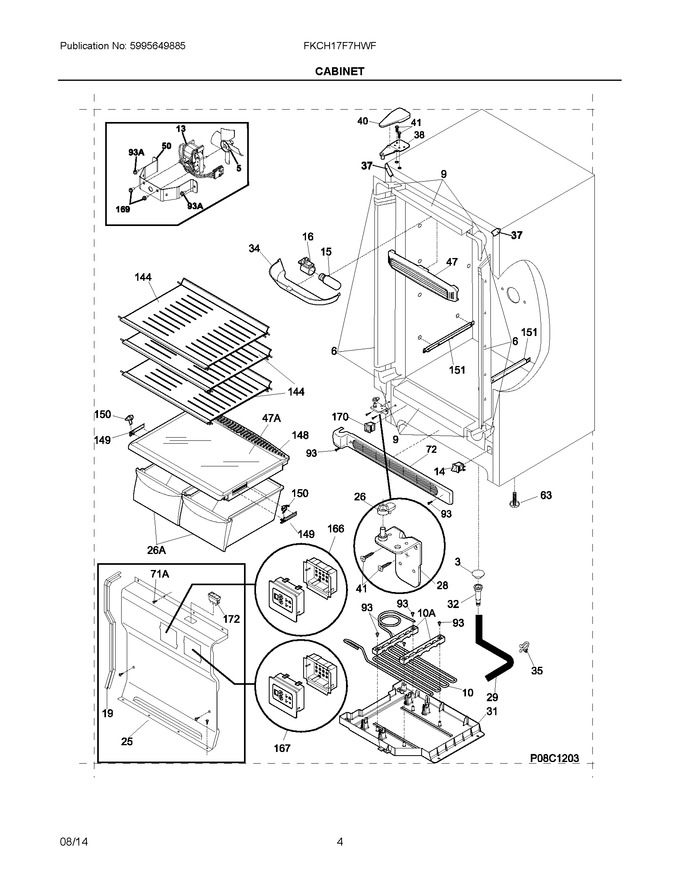

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	297200600		Breaker Kit W/corners, No Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
10	297334500		Heater-drain Pan				$ 72.30
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light Bulb, Short, Blue Tint, 40w   (Replaces: 297114000)			Immediately	$ 73.06
16	297139500		Socket, Light/lamp				$ 18.08
19	216204900		Gasket, Evap Cover				$ 51.45
25	297098853		Cover-evaporator				$ 91.93
26	297248200		Ramp, Door Closer, Lh				$ 12.77
28	297283901		Hinge-bottom, Stepped Pin, Lh				$ 25.52
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165800		Pan-drain				$ 89.15
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate, 32", White   (Replaces: 297036900)				$ 39.29
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
144	297324500		Shelf-assy, Fixed, Glass, Complete				$ 114.54
148	216995501		Cover-crisper Pan		Appelez-nous	-
149	5304492617		Damper, Humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
150	5304492617		Knob, Humidity Cont.   (Replaces: 240361202)			Immediately	$ 8.69
151	216988200		Support-crspr Cover, Rh				$ 68.04
166	297282800		Electronic Control, Freezer, Assy				$ 218.30
167	297282700		Electronic Control, Refrigerator, Assy				$ 238.89
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
172	297251201		Switch, W/harness				$ 166.69
10A	297177400		Bracket, (2), Drain Pan		Appelez-nous	-
151A	216988201		Support-crspr Cover, Lh				$ 67.33
26A	216959900		Pan-crisper, (2)				$ 169.68
47A	240350608		Insert-pan Cover, Glass   (Replaces: 240350650)			Immediately	$ 45.50
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	240494001		Plug, White   (Replaces: 297095300)			Immediately	$ 18.20
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297283900		Hinge-bottom, Stepped Pin			Immediately	$ 54.23
NI	216503300		Ramp, Door Closer				$ 8.82
NI	216910423		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
