View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

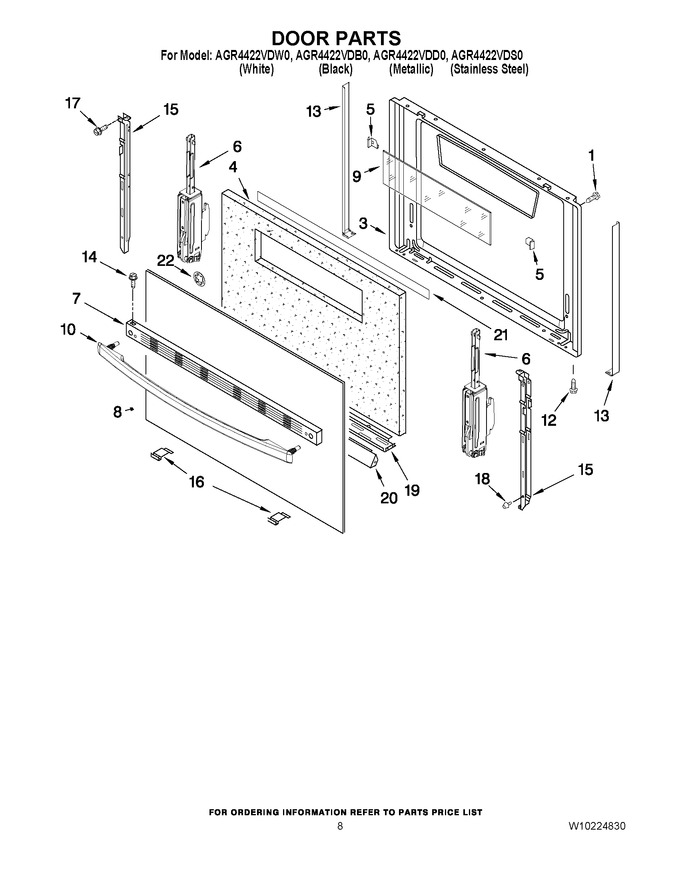

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8533842 | Screw (Replaces: 8533842) |
|
$ 6.26 | |||||
| 3 | 98010182 | Liner, Door |
|
- | |||||
| 4 | W11688816 | Insulation, Door (left Side) (Replaces: W10110943) |
|
$ 22.15 | |||||
| 4 | W10137238 | Insulation, Door |
|
- | |||||
| 4 | W10110944 | Insulation, Door (right Side) |
|
$ 60.17 | |||||
| 5 | 98004953 | Clip, Glass (right) |
|
- | |||||
| 5 | 98004952 | Clip, Glass (left) |
|
- | |||||
| 6 | 98017875 | Hinge, Door (2) |
|
$ 31.85 | |||||
| 7 | 98006885 | Trim, Top Door (white) |
|
- | |||||
| 7 | 98006884 | Trim, Top Door (black & Metallic) |
|
- | |||||
| 8 | WPW10174485 | Panel, Door (white) (Replaces: W10174485) |
|
$ 277.88 | |||||
| 8 | W10174486 | Panel, Door (black & Metallic) |
|
- | |||||
| 9 | WP98006801 | Glass, Inner (Replaces: 98006801) |
|
$ 139.86 | |||||
| 10 | WP98004942 | Handle, Oven Door (black) (Replaces: 98004942) |
|
Immediately | $ 169.88 | ||||
| 10 | WP98004943 | Handle, Oven Door (white) (Replaces: 98004943) |
|
$ 169.40 | |||||
| 12 | WP59002061 | Screw (Replaces: 98004993) |
|
$ 6.98 | |||||
| 13 | 98006794 | Side Trim, Door(2) (white) |
|
- | |||||
| 13 | WP98006793 | Side Trim, Door(2) (black) (Replaces: 98006793) |
|
$ 117.04 | |||||
| 14 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 15.94 | |||||
| 14 | WP98008544 | Screw (white) (Replaces: 98008544) |
|
$ 11.89 | |||||
| 15 | 98004564 | Retainer (right) |
|
- | |||||
| 15 | 98004629 | Retainer (left) |
|
- | |||||
| 16 | 98010185 | Lower Trim, Door (white) |
|
$ 41.41 | |||||
| 16 | WP98010187 | Lower Trim, Door (black) (Replaces: 98010187) |
|
$ 83.31 | |||||
| 17 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 18 | 98004723 | Bumper (Replaces: 98004979) |
|
- | |||||
| 19 | 98004938 | Insulation, Retainer-top |
|
- | |||||
| 20 | 98012904 | Insulation, Retainer-bottom |
|
- | |||||
| 21 | 98017250 | Retainer, Upper |
|
- | |||||
| 22 | WP98004650 | Push Nut, Hndl (2) (Replaces: 98004650) |
|
$ 6.26 | |||||
| NI | 98012220 | Pin Kit-dr Removal |
|
$ 8.91 |
