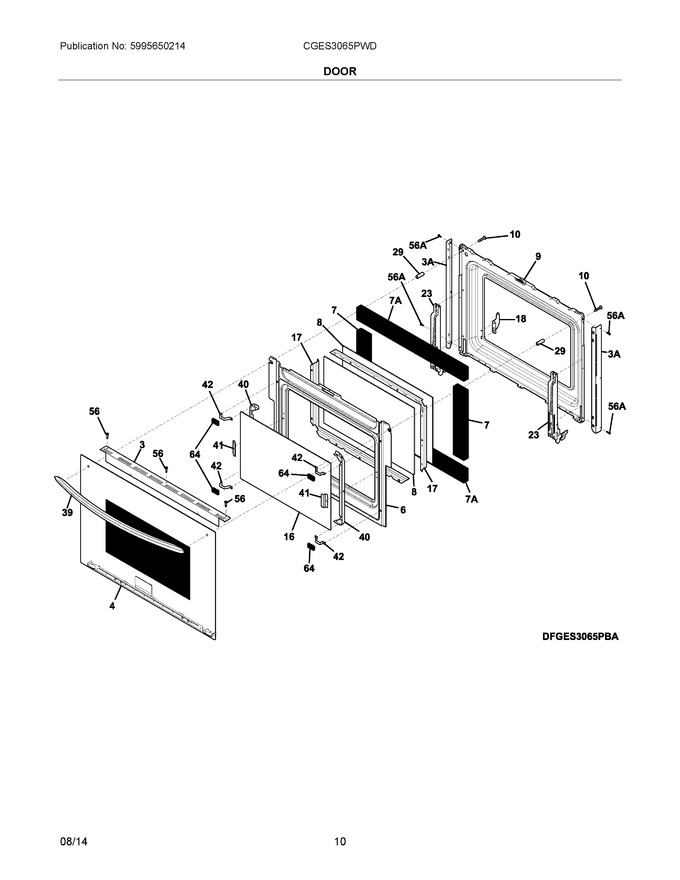

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023301		Trim, Oven Door, Black, Upper				$ 54.60
4	808950005		Door Assembly, Outer, White, W/trim & Badge				$ 478.96
6	139006903		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	139000422		Liner, Oven Door				$ 144.11
10	316001002		Screw, Wafer Head, 10-24 X 1.81, (2), Handle Mtg.				$ 14.89
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer, Glass, (2)   (Replaces: 318264712)				$ 72.05
18	316547900		Link, Door, (2), Auto Rack				$ 20.56
23	316575912		Hinge, Oven Door, Lime Green, (2)   (Replaces: 139014300)				$ 76.59
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	318927400		Handle, Door/drawer, White				$ 216.62
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 50.81
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
64	318165800		Spacer				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
56A	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
7A	318372016		Insulation, Door				$ 17.72
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
