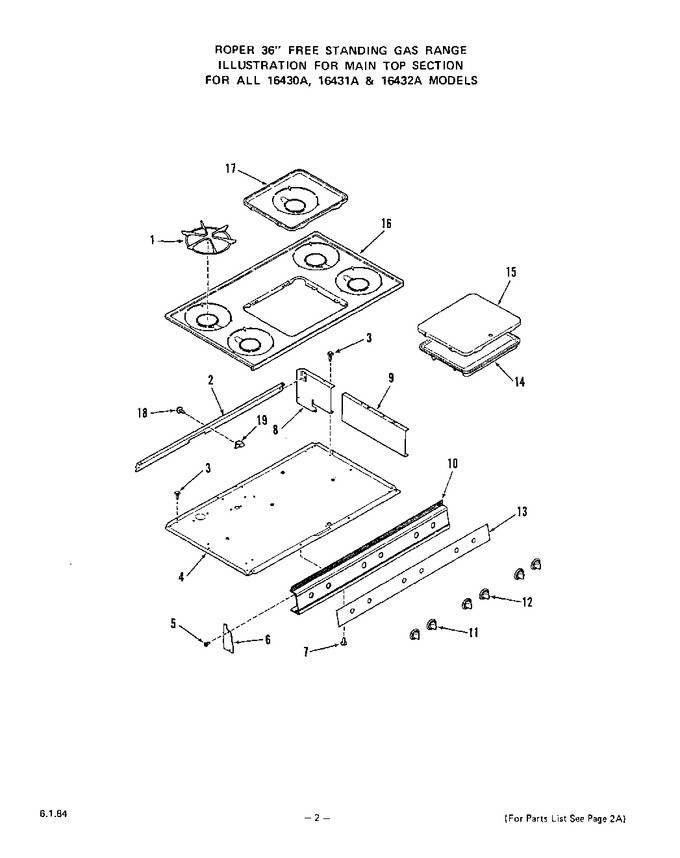

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (5 Req)		Appelez-nous	-
2	327906		Support-rear Main Top		Appelez-nous	-
3	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
4	325157		Burner Box Bottom		Appelez-nous	-
5	295268		Screw 6-32x3/8``		Appelez-nous	-
6	325117		End Cap-manifold Panel (left)		Appelez-nous	-
6	325116		End Cap-manifold Panel (right)		Appelez-nous	-
7	239113		Screw 10-32x3/8``		Appelez-nous	-
8	325121		Extension-burner Box Bottom (right)		Appelez-nous	-
8	325119		Extension-burner Box Bottom (left)		Appelez-nous	-
9	325539		Baffle-burner Box Bottom (right)		Appelez-nous	-
9	325681		Baffle-burner Box Bottom (left)		Appelez-nous	-
10	325122		Manifold Panel		Appelez-nous	-
11	325540		Knob-gas Valve (5 Req)		Appelez-nous	-
12	325541		Knob-oven Thermostat		Appelez-nous	-
13	326128		Trim-manifold Panel		Appelez-nous	-
14	321745		Griddle Plate		Appelez-nous	-
15	327867		Griddle Cover (white)		Appelez-nous	-
15	327871		Griddle Cover (almond)		Appelez-nous	-
15	327868		Griddle Cover (coffee)		Appelez-nous	-
15	327869		Griddle Cover (avocado)		Appelez-nous	-
15	327870		Griddle Cover (golden Wheat)		Appelez-nous	-
16	324889		Main Top (coffee)		Appelez-nous	-
16	324892		Main Top (almond)		Appelez-nous	-
16	324891		Main Top (golden Wheat)		Appelez-nous	-
16	324890		Main Top (avocado)		Appelez-nous	-
16	324888		Main Top (white)		Appelez-nous	-
17	325416		Aeration Pan-griddle (golden Wheat)		Appelez-nous	-
17	325415		Aeration Pan-griddle (avocado)		Appelez-nous	-
17	325414		Aeration Pan-griddle (coffee)		Appelez-nous	-
17	325413		Aeration Pan-griddle (white)		Appelez-nous	-
17	325417		Aeration Pan-griddle (almond)		Appelez-nous	-
18	327320		Screw 10-16x7/16`` All 16431a &2a Models		Appelez-nous	-
19	327872		Bracket-main Top Support All 16431a & 2a Models		Appelez-nous	-
