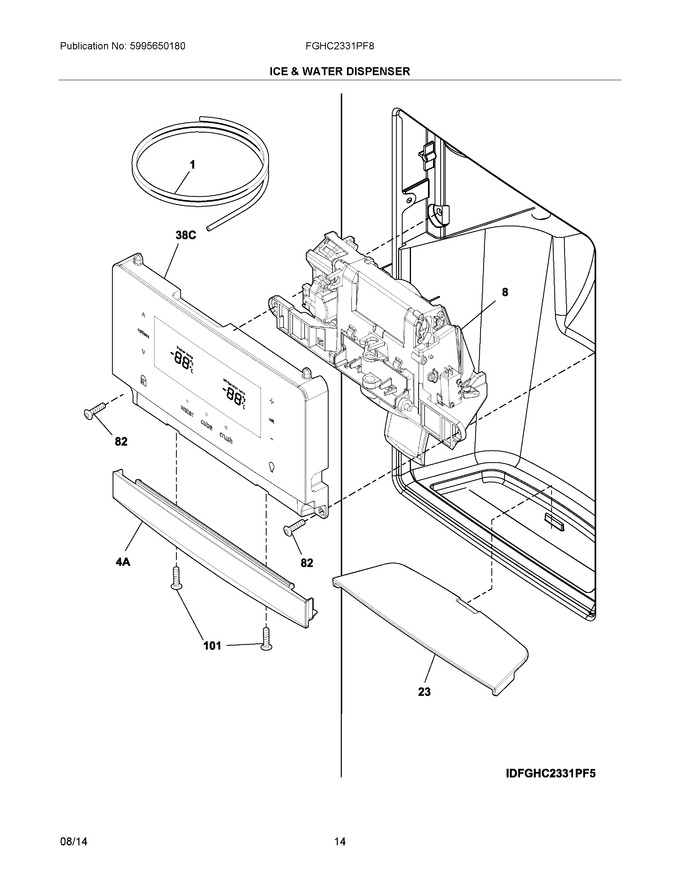

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 8 | 242270107 | Module, Dispenser, Clear, W/paddle (Replaces: 242270101) |
|
$ 209.30 | |||||
| 23 | 242176503 | Sump, Dispenser, Grey |
|
$ 114.11 | |||||
| 82 | 240363403 | Screw, 8-18 X 0.500, 2 |
|
- | |||||
| 101 | 241953902 | Screw, #8 - 18 X .380, 3 |
|
Immediately | $ 17.11 | ||||
| 38C | 5304527931 | User Interface, Assembly, Grey, Complete (Replaces: 242058232) |
|
$ 257.49 | |||||
| 4A | 242176404 | Trim, Facade, Grey |
|
$ 65.25 | |||||
| NI | 5303918596 | Dispenser Heater Kit, 115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NIA | 241953902 | Screw, #8-18 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| NIA | 218976421 | Tube-water Inlet, Valve To Door |
|
$ 20.56 | |||||
| NIB | 218976429 | Tube-water Inlet, 5/16 - 97.50", Brown/tan |
|
$ 40.40 | |||||
| NIC | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NID | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561702) |
|
Immediately | $ 20.56 | ||||
| NIE | 241796406 | Tube-water Fill, Extension |
|
$ 19.85 |
