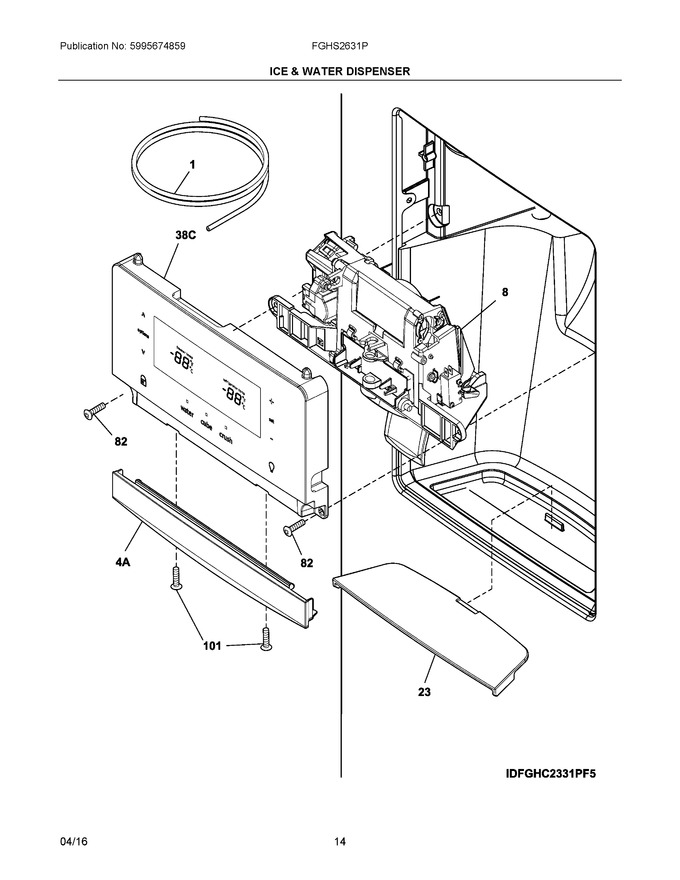

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 8 | 242270107 | Module, Dispenser, Clear, W/paddle (Replaces: 242270101) |
|
$ 209.30 | |||||
| 23 | 242176501 | Sump, Dispenser, White |
|
$ 24.41 | |||||
| 82 | 240363403 | Screw, 8-18 X 0.500, 2 |
|
- | |||||
| 101 | 241953902 | Screw, #8 - 18 X .380, 3 |
|
Immediately | $ 17.11 | ||||
| 38C | 5304527931 | User Interface, Assembly, Grey, Complete (Replaces: 242058232) |
|
$ 257.49 | |||||
| 4A | 242176401 | Trim, Facade, White |
|
$ 46.78 | |||||
| NI | 5304521766 | Harness, Wiring, Door (Replaces: 807487901) |
|
$ 44.75 | |||||
| NI | 5303918596 | Dispenser Heater Kit, 115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door |
|
$ 19.13 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561703) |
|
Immediately | $ 20.56 | ||||
| NICA | 241953902 | Screw, #8-18 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| NID | 241796407 | Tube-water Fill, Extension |
|
$ 19.85 | |||||
| NIE | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
