View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet

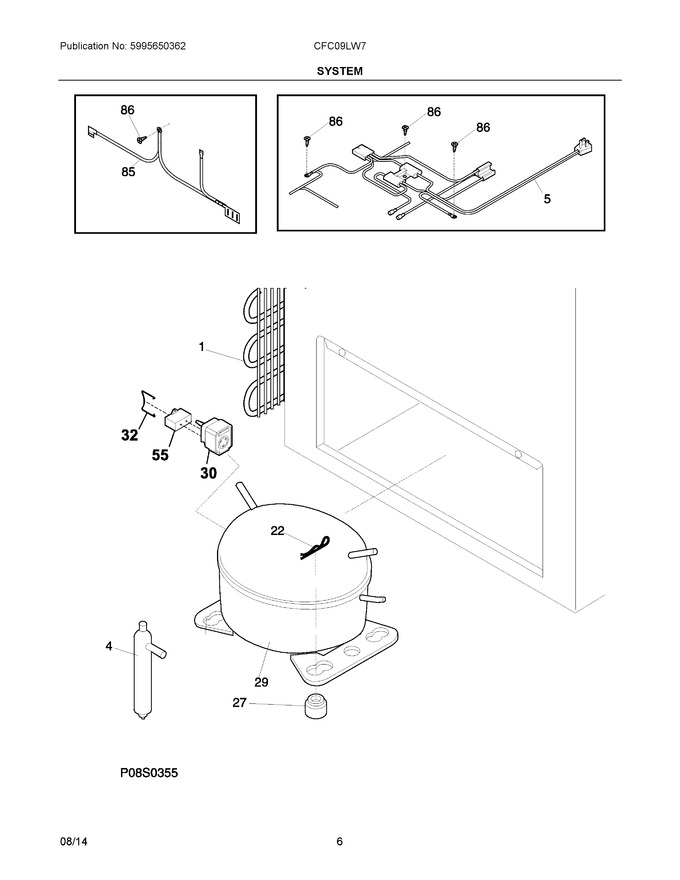

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300120781 | Condenser |
|
- | |||||
| 4 | 5303305677 | Filter-dryer (Replaces: 216987501) |
|
Immediately | $ 31.67 | ||||
| 5 | 297346801 | Harness, Wiring, Main |
|
$ 64.74 | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 14.41 | |||||
| 29 | 297411102 | Compressor |
|
- | |||||
| 30 | 216954235 | Controller, Compressor (Replaces: 216954205) |
|
Immediately | $ 87.21 | ||||
| 32 | 216649200 | Clip, Controller |
|
$ 6.30 | |||||
| 55 | 297286812 | Capacitor-run, 250 Va, 12 Mf (Replaces: 297286802) |
|
Immediately | $ 11.78 | ||||
| 85 | 216818300 | Wire-ground |
|
- | |||||
| 86 | 216707801 | Screw, Ph, 8-32 X 1/2, Wiring Harness |
|
- |
