SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

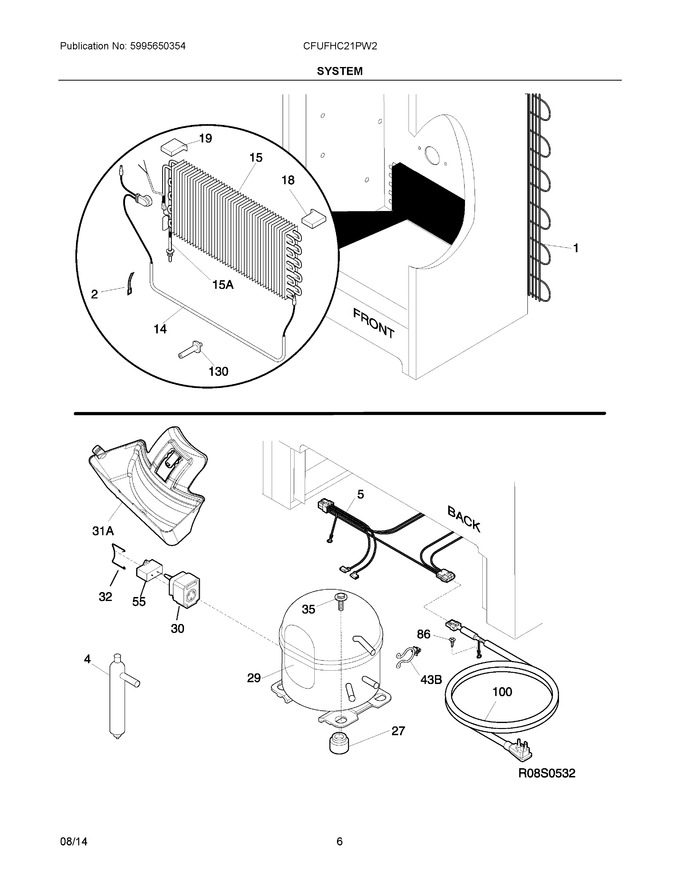

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 216987501)			Immediately	$ 31.67
5	297237600		Harness-main				$ 107.12
14	5304496284		Defrost Heater			Immediately	$ 110.30
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 171.34
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
27	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
29	5304475098		Compressor Egx60hlc   (Replaces: 297352152)				$ 496.13
30	216954212		Controller, Compressor				$ 106.17
32	297359700		Clip, Controller		Appelez-nous	-
35	297368500		Bolt, Compressor		Appelez-nous	-
55	297286812		Capacitor-run, 250 Va, 12 Mf   (Replaces: 297286802)			Immediately	$ 11.78
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
100	297366806		Cord, Power				$ 111.14
130	297244700		Support, Evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger, Suct/cap Tube			Immediately	$ 91.82
31A	216994102		Pan-drain   (Replaces: 216994101)				$ 30.53
43B	297315800		Clip, Wire				$ 10.13
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	297237512		Harn W/elect Def Timer				$ 81.17
NI	297018400		Thermistor			Immediately	$ 79.52
NI	216502500		Sleeve, Suction Line				$ 10.85
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
