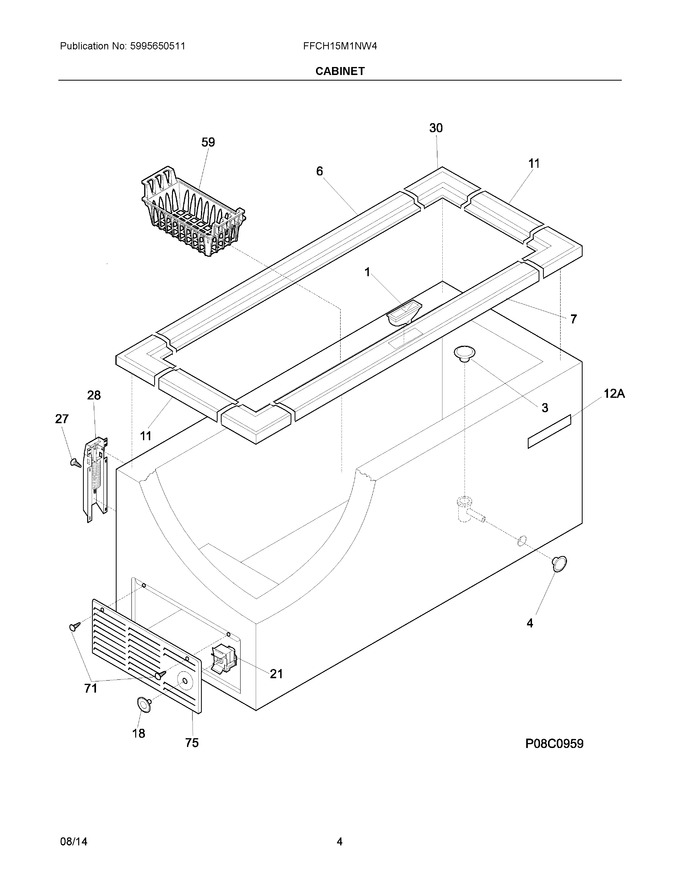

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	216955505		Breaker, Hinge Side				$ 7.29
7	297129200		Breaker, Lock Side, W/lock Catch				$ 46.03
11	216955500		Breaker, Chest End, (2)				$ 15.75
18	216707200		Knob, Temp Control				$ 44.10
21	297216030		Control-temperature				$ 94.98
27	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
28	297321900		Hinge Assy				$ 90.01
30	216110700		Breaker, Corners				$ 28.45
59	216916200		Basket, Upper				$ 31.92
71	5303302714		Screw, #8-18 X .75		Appelez-nous	-
75	216034301		Panel, Access, White				$ 103.01
12A	242062801		Nameplate, White				$ 11.65
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297082111		Energy Guide		Appelez-nous	-
