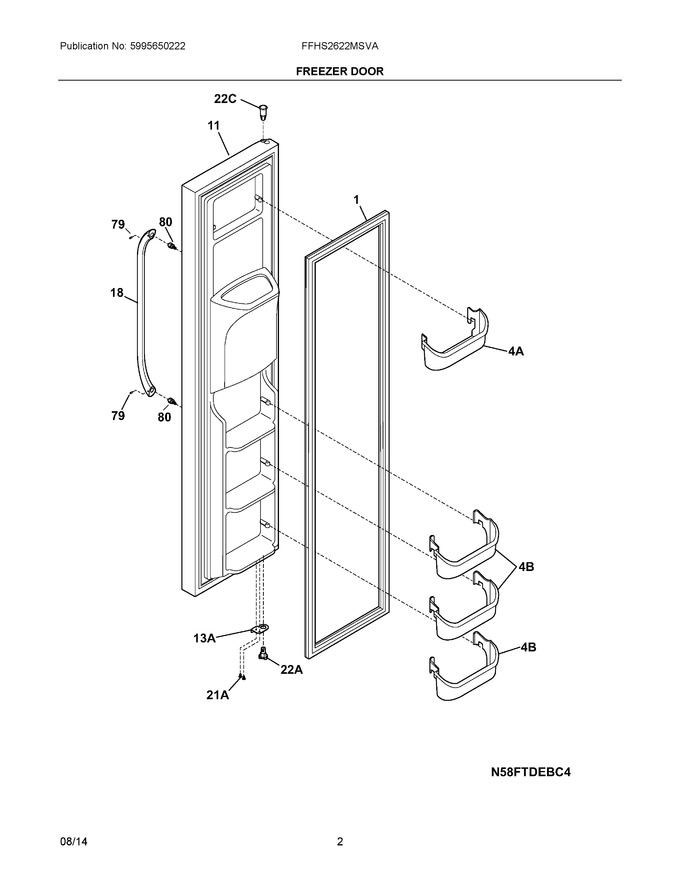

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Freezer Door Gasket, Grey, Magnetic (Replaces: 241786006) |
|
$ 95.17 | |||||
| 11 | 242026495 | Door-frzr, Stainless, Complete Assy |
|
$ 689.14 | |||||
| 18 | 242059301 | Handle-door, Stainless, W/set Screws |
|
$ 219.03 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241942604 | Door Stop, Black, Frzr |
|
$ 20.56 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 4A | 240334201 | Bin-door, Frzr-upper |
|
$ 67.21 | |||||
| 4B | 240351601 | Bin-door |
|
Immediately | $ 58.73 | ||||
| NI | 5304521768 | Harness, Wiring, Dispenser Door (Replaces: 242207001) |
|
$ 38.28 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 |
